Dana 30 Front Axle Assembly Nitro Gear and Axle

Overview
Specifications
Contact Us

Our OE replacement axles are made of forged alloy for a 20-30 percent increase in strength over their stock counterparts. Nitro chromoly axles are also precision machined and heat treated but are designed with extra material for strength where it is needed. All of our axles are precision machined to OE specifications for excellent fitment. Nitro also offers extra long-splined shafts which can be cut to length and blank shafts for custom spline machining. Each new product is subjected to multi-point inspections and then actually installed and set up by the Nitro in-house differential experts to ensure excellent fitment and easy setup. At Nitro we strive to meet our consumers demands for new ratios and applications and we are continually developing new products to stay ahead of the competition. CNC precision machining and heat treating processes ensure excellent fitment and overall strength. Our heat treatment is applied after the splines are cut which allows for deeper penetration where strength is needed. We have a rapid and ever growing range of products to meet new demands and applications.
Details:

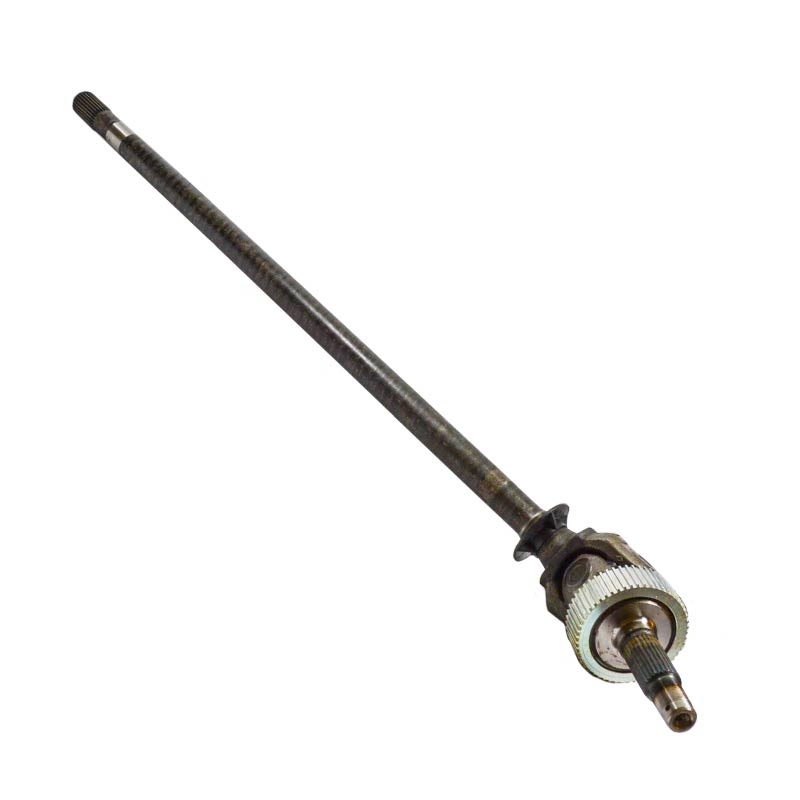

Dana 30 TJ/LJ/YJ/XJ/MJ RH Nitro Front Axle Assembly (Includes ABS Ring)
Manufactured from Alloy Steel
Differential: Dana 30
Axle Length: 38.52 Inch Overall/32.40 Inch Inner
Axle Spline:
U-Joint:
Axle Type: Outer/Inner Assembly (Includes ABS Ring)
Wheel Bolt Pattern: 5 on 4.5 Inch
Manufacturer: Nitro Gear and Axle
Warranty:
Sold As Each

Vehicle Applications:

1997-2006 Jeep TJ Wrangler
2004-2006 Jeep LJ Wrangler Unlimited
1987-1995 Jeep YJ Wrangler
1997-2001 Jeep XJ Cherokee
1986-2002 Jeep MJ Comanche

Products specifications

Country of Origin	USA
Sold As	Each
Axle Type	Outer/Inner
UPC	670385602443
Differential	Dana 30
Availability	Available
Location	RH Front
Universal	No
Axle Length	38.52/32.40 Inch
Mfg Label	Axle Assembly
Youtube Video	https://youtu.be/KvB_LbTbpE4
Bolt Pattern	5 on 4.5 Inch
Fitment Notes	83-01 Cherokee, 87-95 Wrangler, 84-01 Comanche, 96-07 Wrangler04-06 Wrangler Unlimited
Material	Alloy Steel
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
