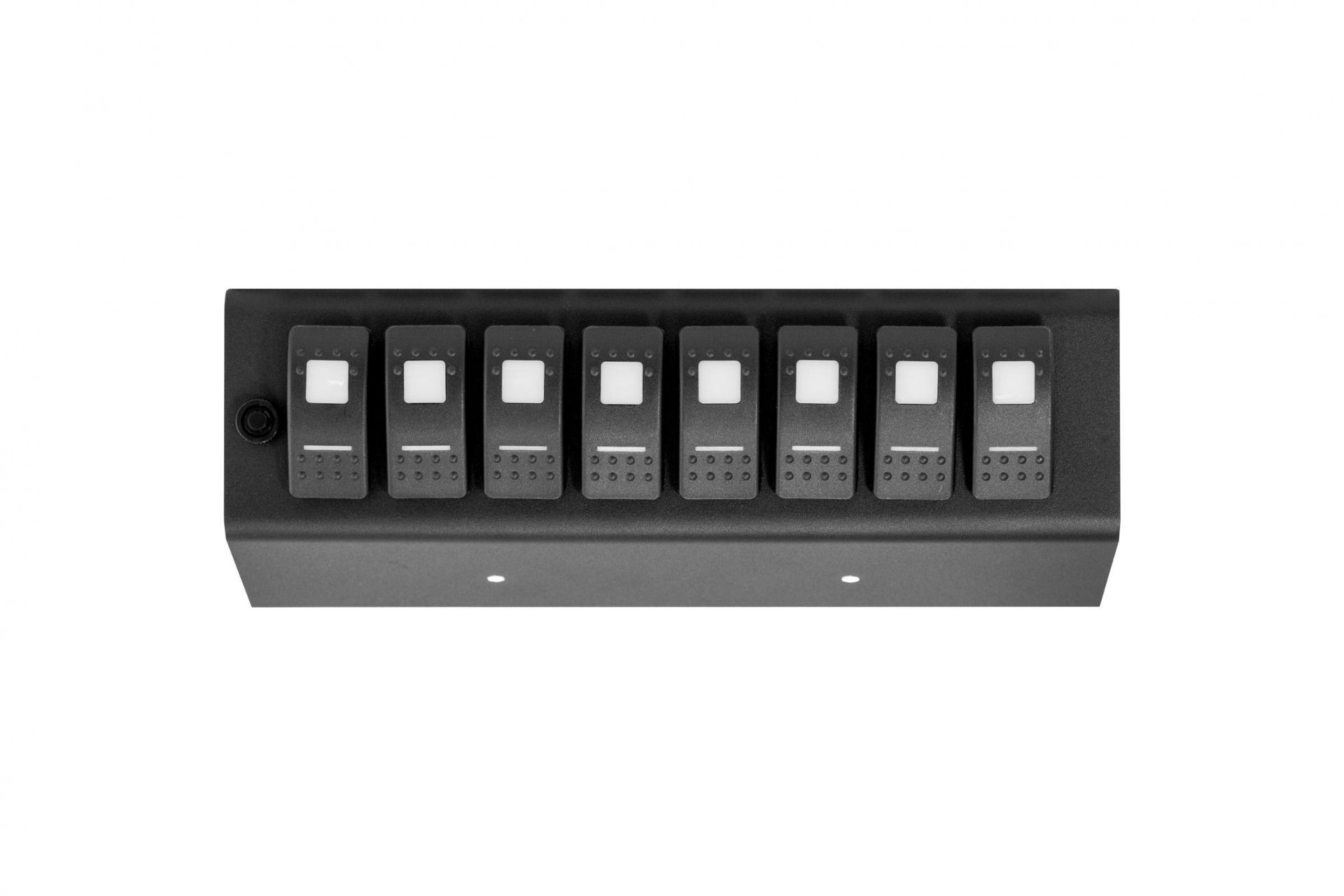

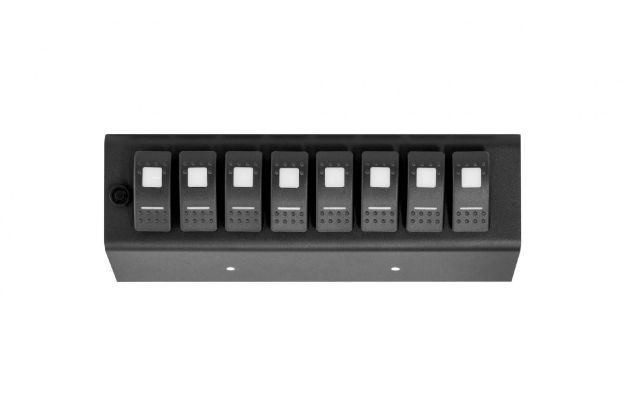

JK Add On Switch Panel For 8 Circuit SE System 07-08 Wrangler JK Various Colors sPOD

Vehicle Fitments

Make	Model	Submdel	From	To
Jeep	Wrangler	Rubicon	2007	2008
Jeep	Wrangler	Sahara	2007	2008
Jeep	Wrangler	Unlimited Rubicon	2007	2008
Jeep	Wrangler	Unlimited Sahara	2007	2008
Jeep	Wrangler	Unlimited X	2007	2008
Jeep	Wrangler	X	2007	2008

Overview
Specifications
Contact Us

JK Add On Switch Panel For 8 Circuit SE System 07-08 Wrangler JK Red. The system utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity!

The sPOD SourceSE is a fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States.

This is an Add On Only be added to SE Touchscreen system 8-700-TS-JK to allow Touchscreen and hard switch panel option. Not designed to be used without SE 8 Circuit Source. Fits 2007-2008 Jeep JK.
Switch Panel Features:

Dual lit (LED indicator lights, on position and pilot light) in Red (All switches will be one color)
The new switch panel has 8 switches. This panel uses an Ethernet cable that interfaces with the Source with a RJ-45 plug on both ends. Standard cable length will be 10 feet.
Each switch is programmable for Strobe or Flash (by a sequence of On/Off/On quickly )
Automatic system shut down when panel is unplugged
Lower pilot light has an independent power control push button for full operator control
Switches are Carling Technologies Contura series with an IP67 rating (marine/heavy equipment)
Switch Panel housing is Not plastic but rather, an aluminum formed and welded design to match the interior of the Jeep JK (2009-2015) with specific mounting hardware
Switch panel can be daisy chained for remote operations (EG: one panel in cab and one panel in far back of truck) can easily add up to 10 switch panels.
Options to mix and match with the Touchscreen panels as well.
Two ports available integrated into the CAN-Bus controller.

Products specifications

Country of Origin	US
Sold As	Kit
UPC	816482021118
Availability	Available
Universal	No
Battery Cable Length	84 Inch
Built In Blue Tooth	No
Capacity	100 AMP
Circuit Breaker Included	50 AMP
Legends Included	No
Mfg Label	Switch Panel
Mount Location	Between visors on windshied frame
Number of Switches	8
Product Notes	Must have 8 Circuit SE Source for JK
Single Circuit Capacity	30 AMP
Switch Color	Red
Switch Illumination	Dual LED
Youtube Video	https://youtu.be/jSkmQyQZUu8
Material	Aluminum Formed
Color	Black
Finish	Powdercoat
