Baja Designs latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 25,312 lumens of pure power, low amp draw of 16.23 amps, and nearly 50,000 hours of LED life. The S8 also features upgraded reflectors, an amber backlit feature, and new scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

Light Pattern:Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting.(Lighting Zones 1 and 2) (Also available in amber)

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 25,312 Utilizing 32 Cree LEDs
  • Wattage/Amps: 224W / 16.23A
  • Dimensions: 40 x 3 x 1.6 inch
  • Weight: 8.65 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:
S8 40 inch LED Light Bar
Mounting Brackets

Products specifications
Country of OriginUSA
Sold AsEach
UPC819314026268
AvailabilityAvailable
UniversalYes
Bezel MaterialBillet Machined Aluminum
Bracket MaterialStainless Steel
Brackets IncludedYes
Housing TypeAircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Lens ColorAmber
Light PatternWide Driving
Mfg LabelLED Light Bar
Waterproof RatingIP69K Waterproof
Wattage/AMP160W / 13.32A
Youtube Videohttps://youtu.be/G9rvxf9ZF8M
SeriesS8 Series
Lumens18,080
ColorBlack
Bar Length40 Inch
Bar TypeSingle Straight
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

*
*
*

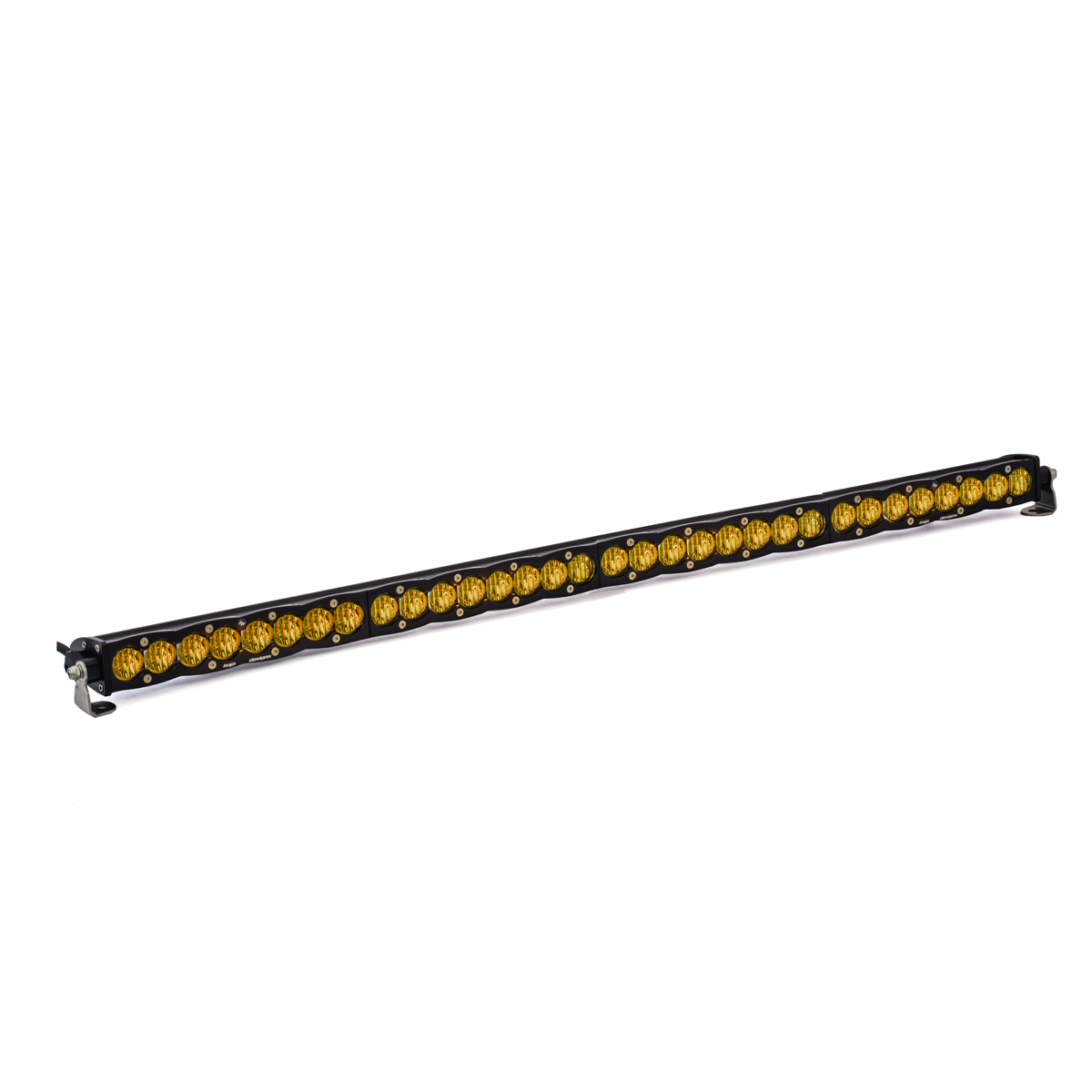

Picture of 40 Inch LED Light Bar Amber Wide Driving Pattern S8 Series Baja Designs
40 Inch LED Light Bar Amber Wide Driving Pattern S8 Series Baja Designs
SKU: 704014-FGXX
Manufacturer part number: 704014
Picture of 40 Inch LED Light Bar Amber Driving Combo Pattern S8 Series Baja Designs
40 Inch LED Light Bar Amber Driving Combo Pattern S8 Series Baja Designs
SKU: 704013-FGXX
Manufacturer part number: 704013
Products specifications
Country of OriginUSA
Sold AsEach
UPC819314026268
AvailabilityAvailable
UniversalYes
Bezel MaterialBillet Machined Aluminum
Bracket MaterialStainless Steel
Brackets IncludedYes
Housing TypeAircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Lens ColorAmber
Light PatternWide Driving
Mfg LabelLED Light Bar
Waterproof RatingIP69K Waterproof
Wattage/AMP160W / 13.32A
Youtube Videohttps://youtu.be/G9rvxf9ZF8M
SeriesS8 Series
Lumens18,080
ColorBlack
Bar Length40 Inch
Bar TypeSingle Straight
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
