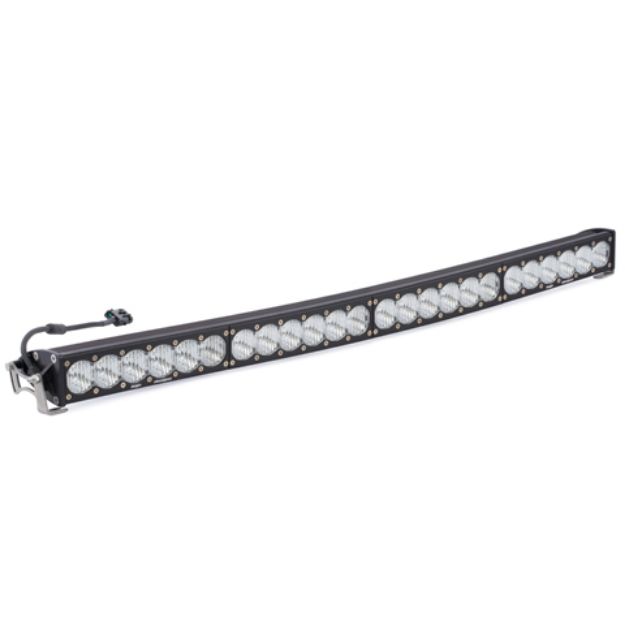

The NEW OnX6 Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

The OnX6 Arc Series LED Light Bar is Brighter. Bolder. Better.

Light Pattern:Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting.(Lighting Zones 1 and 2)

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: (High) 39,220 (Low) 32,760 Utilizing 24 Cree LEDs
  • Wattage/Amps: (High) 340W / 26.8A (Low) 284W / 22.4A
  • Dimensions: 40 x 4.29 x 2.69 inch
  • Weight: 15.05 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

OnX6 40 inch LED Light Bar Arc Series
Mounting Brackets
Hi-Low Dongle

Products specifications
Country of OriginUSA
Sold AsEach
UPC819314022338
AvailabilityAvailable
UniversalYes
Bezel MaterialBillet Machined Aluminum
Bracket MaterialStainless Steel
Brackets IncludedYes
Housing TypeAircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Lens ColorClear
Light PatternWide Driving
Mfg LabelLED Light Bar
Waterproof RatingIP69K Waterproof
Wattage/AMP252W / 21A
Youtube Videohttps://youtu.be/G9rvxf9ZF8M
SeriesOnX6 Arc Series
Lumens25,800
ColorBlack
Bar Length40 Inch
Bar TypeSingle Curved
