At an impressive 38,900 lumens, the brightest just got up to 50 percent brighter. The OnX6 LED light bar also integrates Baja Designs trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT Battery Management Technology
-Elimination Of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes

Light Pattern: Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting.(Lighting Zones 1 and 2)

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 39,430 Utilizing 30 Cree LEDs
  • Wattage/Amps: 355W / 28.2A
  • Dimensions: 50 x 4.29 x 2.69 inch
  • Weight: 18.65 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

OnX6 50 Inch LED Light Bar
Mounting Brackets
Hi-Low Dongle

Products specifications
Country of OriginUSA
Sold AsEach
UPC819314020044
AvailabilityAvailable
UniversalYes
Bezel MaterialBillet Machined Aluminum
Bracket MaterialStainless Steel
Brackets IncludedYes
Housing TypeAircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Lens ColorAmber
Light PatternWide Driving
Mfg LabelLED Light Bar
Waterproof RatingIP69K Waterproof
Wattage/AMP292.5W / 25A
Youtube Videohttps://youtu.be/G9rvxf9ZF8M
SeriesOnX6 Series
Lumens32,250
ColorBlack
Bar Length50 Inch
Bar TypeSingle Straight
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

*
*
*

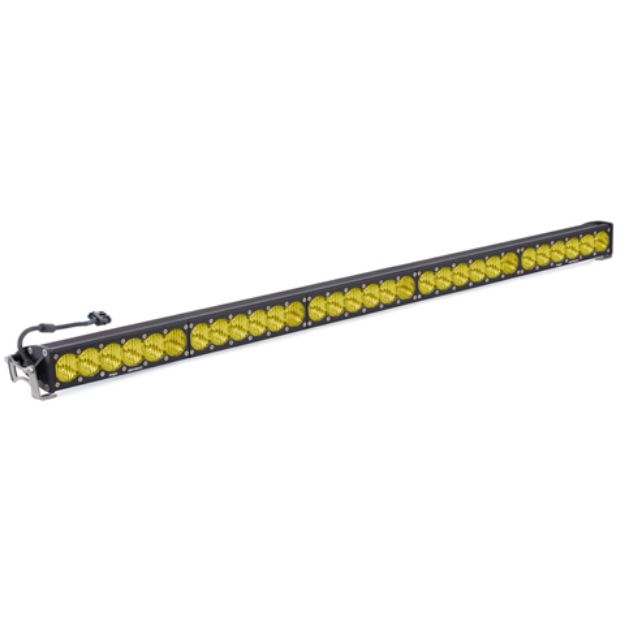

Picture of 50 Inch LED Light Bar Amber Wide Driving Pattern OnX6 Series Baja Designs
