BMW F800GS Light Squadron Kit 13-17 BMW F800GS Pro Baja Designs

Manufacturer: Baja Designs

SKU: 496013-FGXX

Manufacturer part number: 496013

Be the first to review this product

$551.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
BMW	F800GS		2013	2017

Overview
Specifications
Reviews
Contact Us

Light up all your adventures with the Squadron Pro BMW F800 LED Light Kit This kit utilizes two Squadron pro LED lights. The Pro in combo creates a perfect overall spread while the pro in spot adds distance. If you're looking for the ultimate addition to your BMW F800, look no further.
Note: This kit has been specifically designed for the BMW F800 2013-2017 , so no modification is necessary.
Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color

Specifications :

Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

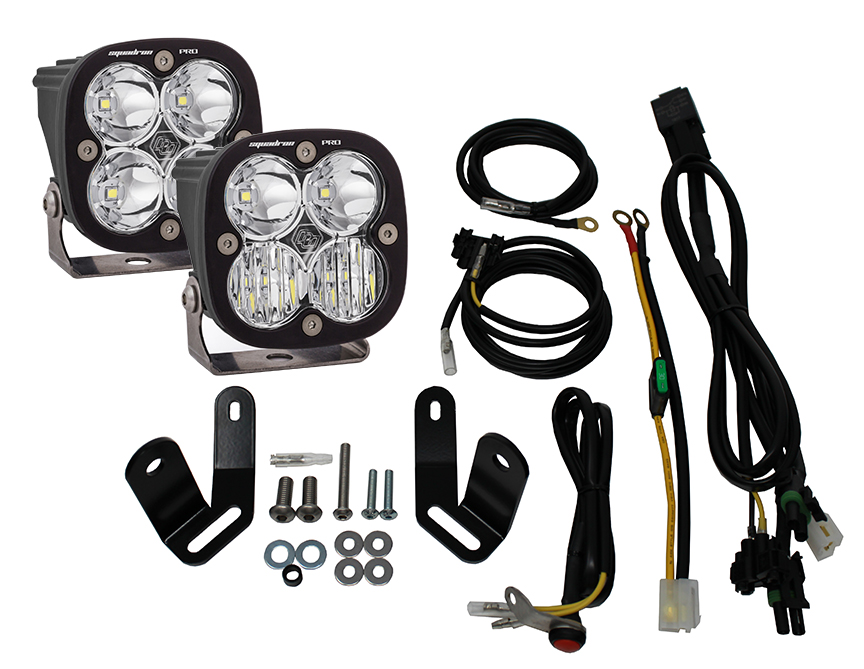

Includes:

Squadron Pro Driving/ Combo LED Light
Squadron Pro Spot LED Light
BMW F800 Mounts
Switch
Wiring Harnesses
Hardware

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	819314028750
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Driving/Combo and Spot
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	Squadron Pro Series
Finish	Powdercoat
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
