F-150 A Pillar Kit Squadron Pro Spot 21-On F-150 Baja Designs

Vehicle Fitments

Make	Model	Submdel	From	To
Ford	F-150	King Ranch	2021	2022
Ford	F-150	Lariat	2021	2022
Ford	F-150	Limited	2021	2022
Ford	F-150	Platinum	2021	2022
Ford	F-150	Police Responder	2021	2022
Ford	F-150	Raptor	2021	2022
Ford	F-150	SSV	2021	2022
Ford	F-150	Tremor	2021	2021
Ford	F-150	XL	2021	2022
Ford	F-150	XLT	2021	2022

Overview
Specifications
Contact Us

With the Ford, F150 (21-On) A Pillar Kit being an easy bolt on application, this makes it simple to put our Squadron Pros on your vehicle. Whether this kit is for camp lighting or cruising down a dark road, this kit will give all the output you need.

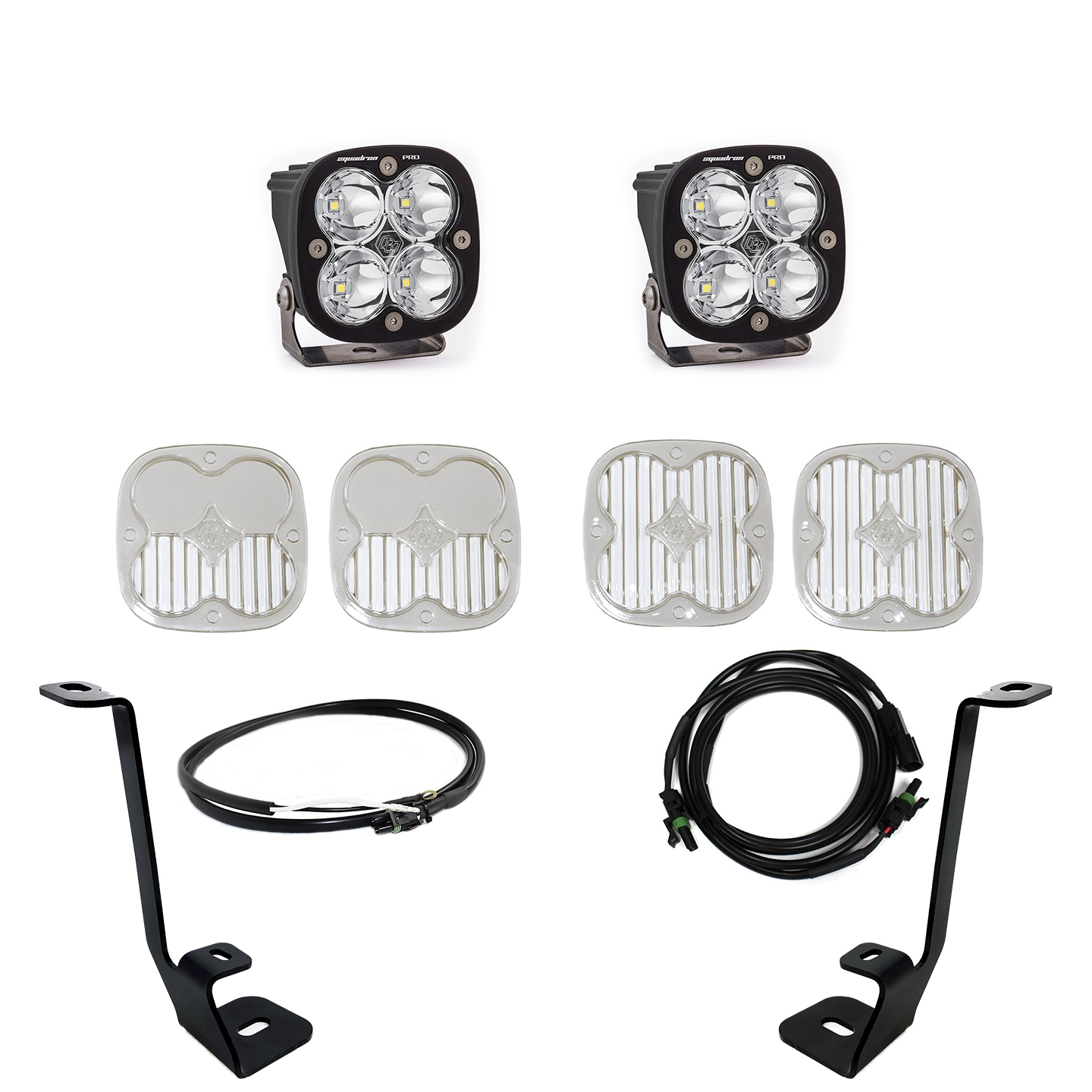

This kit includes powder coated A-Pillar brackets, stand-alone wiring harness, stainless-steel hardware as well as Squadron Driving Combo and Squadron Wide Cornering lenses to give you the option to fully customize the pattern of your A-Pillar lights.

Baja Designs Features:

Satisfactions Guaranteeand30 Day Money Back Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color

Specifications (Per Light):

Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Application:

Ford F150 (21 - On)

Included:

Squadron Pro, Spot Pair
x2 A-Pillar Brackets
x1 Upfitter Harness
x1 Parts Bag
x2 Driving Combo Lenses
x2 Wide Cornering Lenses

Patterns:

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (8 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031743469
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	Squadron Series
Finish	Hard Anodized
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
