F-150 Fog Pocket Kit SAE Clear/Pro DC 21-On Ford F-150 Baja Designs

Vehicle Fitments

Make	Model	Submdel	From	To
Ford	F-150	King Ranch	2021	2022
Ford	F-150	Lariat	2021	2022
Ford	F-150	Limited	2021	2022
Ford	F-150	Platinum	2021	2022
Ford	F-150	Police Responder	2021	2022
Ford	F-150	Raptor	2021	2022
Ford	F-150	SSV	2021	2022
Ford	F-150	Tremor	2021	2021
Ford	F-150	XL	2021	2022
Ford	F-150	XLT	2021	2022

Overview
Specifications
Contact Us

This kit is perfect if you are looking to spice up your brand new 2021 Ford, F150 with a premium lighting kit. This kit specifically utilizes a set of Squadron Clear SAE and a set of Squadron Pros in driving combo lens pattern.

This kit also includes powder coated fog pocket brackets, stainless-steel hardware as well as our custom harness. One pair of Squadrons will be operable off your OEM fog light switch, and both pairs of Squadrons can be turned on with our provided toggle switch harness.

Specifications (Per SAE):

Lumens:2,480 Utilizing 4 LEDs
Wattage/Amps:22W / 1.6A
Dimensions:3.07 Inch x 2.77 Inch x 3.07 Inch
Weight:12 ounces
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware and Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Specifications (Squadron Pro):

Lumens:4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps:40W / 2.90A
Dimensions:3.07 Inch x 2.77 Inch x 3.07 Inch
Weight:12 ounces
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Hard Anodized and Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware and Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Baja Designs Features:

Satisfactions Guarantee:30 Day Money Back Guarantee
Limited Lifetime Warranty:Complete Purchase Protection
uService:Replaceable Lenses And Optics
ClearView:All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive:Only LED Driven At 100 Percent
5000K Daylight:Less Driver Fatigue, Natural Color

Application:

Ford F150 (21 - On)

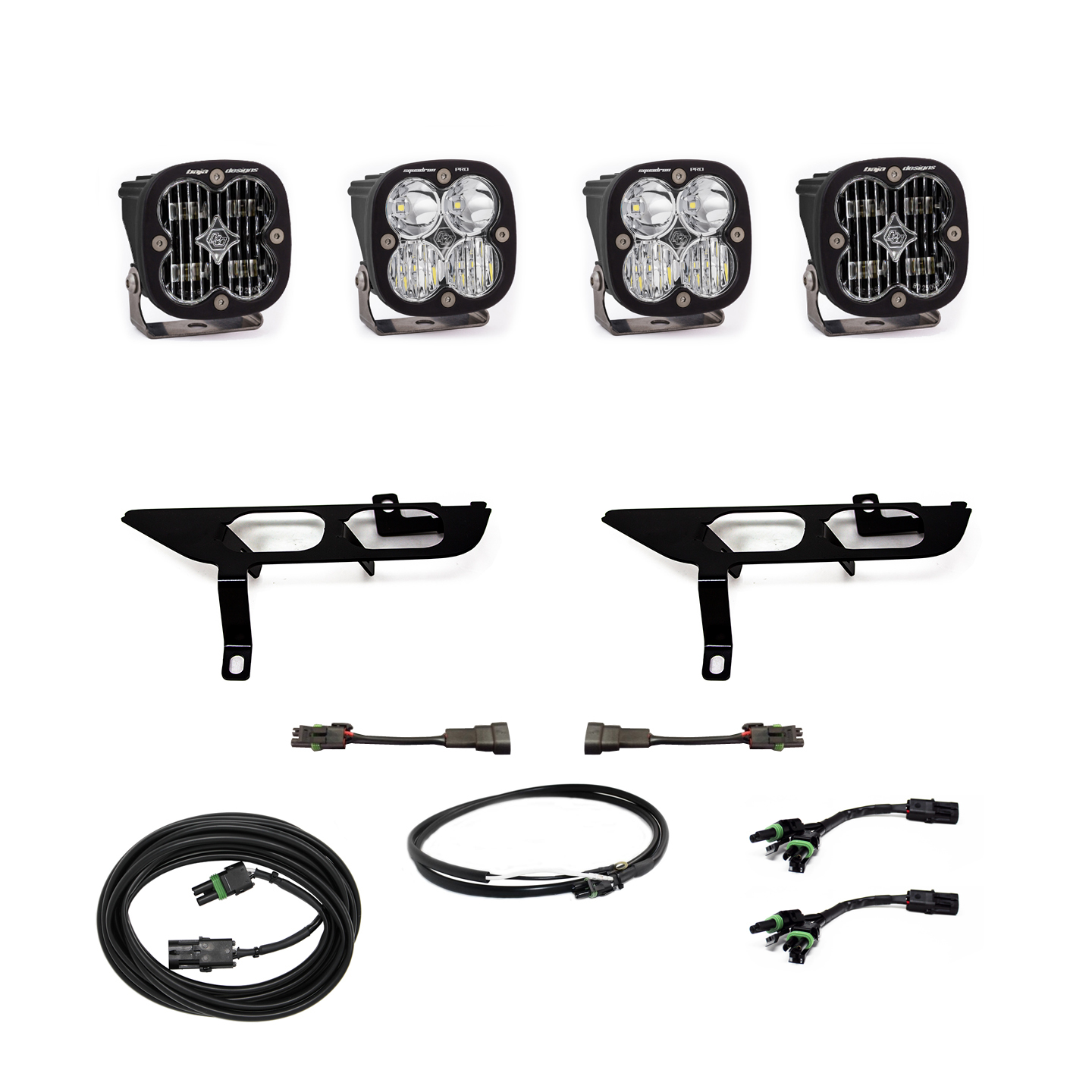

Included:

Squadron Pro, Driving/Combo Pair
Squadron SAE, Clear Wide Cornering Pair
x2Fog Pocket Brackets
x2 Wire Adapters
x1 Toggle Switch Harness
x2 55 Inch Splitters
x2 small Splitters

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree ) and spot (8 Degree ) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031743520
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	Squadron Series
Finish	Hard Anodized
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
