F-150 Tundra Tacoma Squadron Sport Amber FPK Baja Designs

Manufacturer: Baja Designs

SKU: 447787-FGXX

Manufacturer part number: 447787

Be the first to review this product

$356.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Toyota	Tacoma		2005	2011
Toyota	Tacoma	X-Runner	2005	2011
Toyota	Tacoma	Pre Runner	2005	2011
Ford	F-150	Lariat	2006	2014
Ford	F-150	XL	2006	2014
Ford	F-150	STX	2006	2014
Ford	F-150	XLT	2006	2014
Ford	F-150	Harley-Davidson Edition	2006	2008
Ford	F-150	King Ranch	2006	2014
Ford	F-150	FX4	2006	2014
Toyota	Tundra	Limited	2007	2013
Toyota	Tundra		2007	2013
Toyota	Tundra	SR5	2007	2011
Ford	F-150	FX2	2007	2008
Ford	F-150	THE 60TH ANNIVERSARY EDITION	2008	2008
Ford	F-150	Limited	2008	2008
Ford	F-150	Platinum	2009	2014
Ford	F-150	Harley-Davidson Edition	2010	2012
Ford	F-150	SVT Raptor	2010	2014
Ford	F-150	FX2	2010	2014
Ford	F-150	Lariat Limited	2011	2011
Ford	F-150	Limited	2013	2014
Toyota	Tundra	Platinum	2013	2013

Overview
Specifications
Reviews
Contact Us

This mount kit works for the Ford F-150 (06-14), Toyota Tundra (07-13), and Tacoma (05-11) Fog Pocket Kit allows you to mount 2 Squadrons in the factory location. This Plug and Play kit includes two vehicle specific mounting brackets and a wiring adapter, allowing you to use your factory switch and mounting hardware.

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService- Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color
Specifications(Per Light):
Lumens: 4,600 Utilizing 2 types of Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

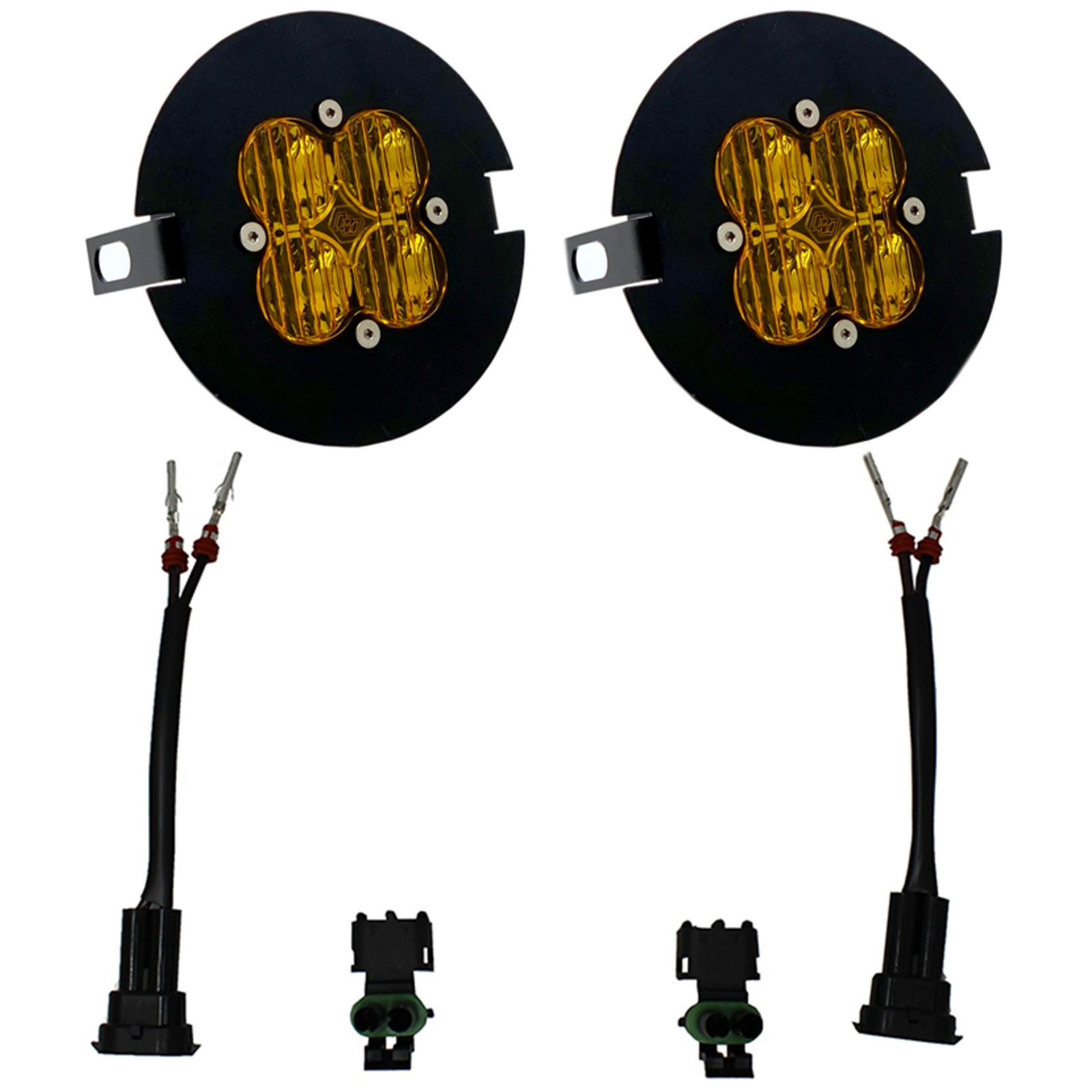

Included:

x2 Ford/Toyota, Tundra, Tacoma Fog Light Bracket
x2 Squadron Sport, LED Wide Cornering, Amber
x2 Harness adapter

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031744497
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy	49,930 Hours
Series	Squadron Series
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
