Ford F-150/Raptor S8 20 Inch Front Bumper Kit Baja Designs

Manufacturer: Baja Designs

SKU: 447781-FGXX

Manufacturer part number: 447781

Be the first to review this product

$764.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Ford	F-150	SVT Raptor	2010	2014

Overview
Specifications
Reviews
Contact Us

This OEM Ford Raptor / F150 Mount Kit will give your truck the clean, sleek look that so many strive for. This kit only fits either a 2010-2016 Ford Raptor F-150 and 2010-2014 Ford F-150.

Note: Trimming is required on this kit

Baja Designs Features:

Satisfactions Guarantee -30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock- Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

Lumens: 12,700 Utilizing 16 Cree LEDs
Wattage/Amps: 120W / 8.00A
Dimensions: 20 inch x 3 inch x 1.6 inch
Weight: 4.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
(S8 Patent D780,964)

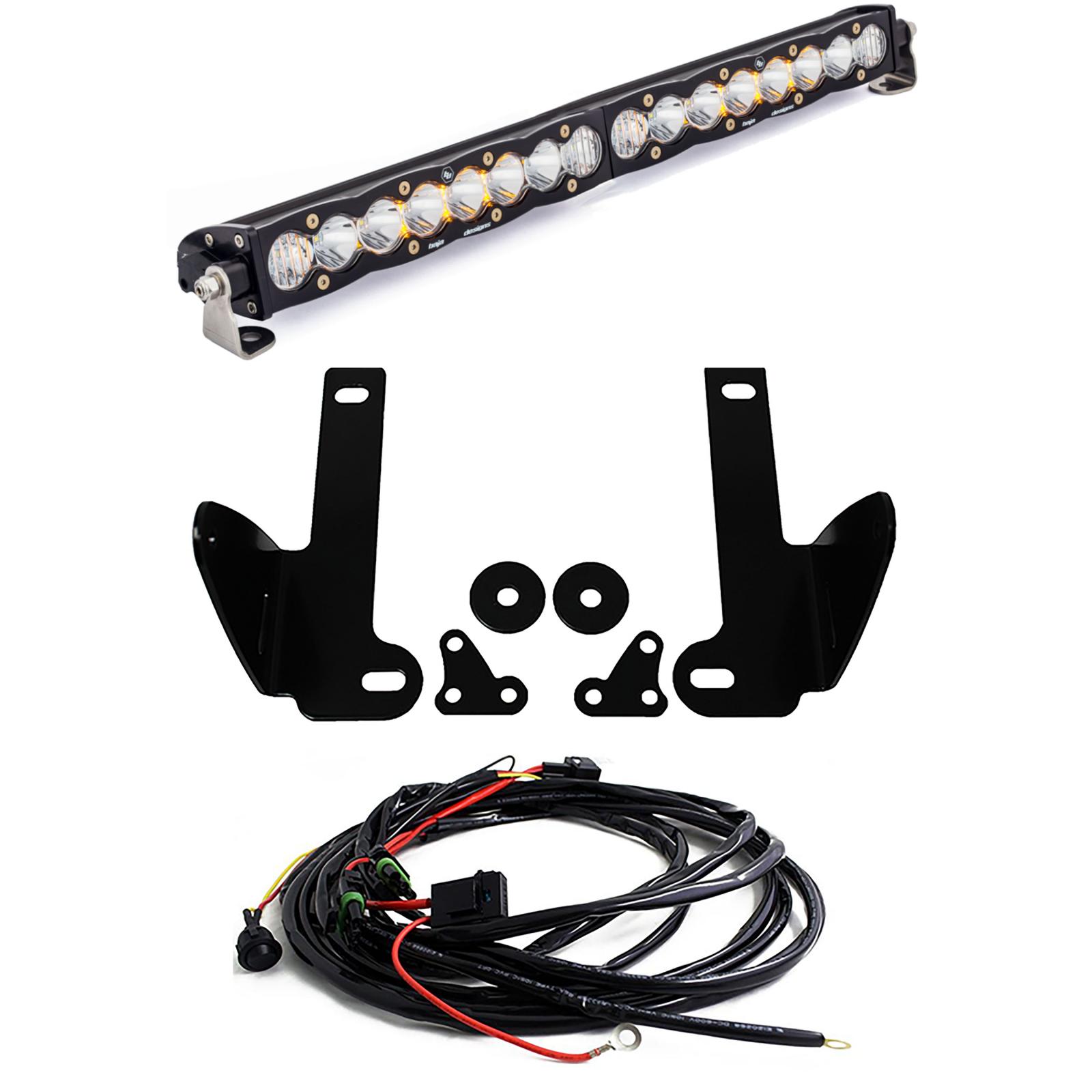

Includes:

x2 OEM Ford Raptor Mounting Brackets
x1 S8, 20 inch Driving/Combo LED Light Bar
Wiring Harness with Toggle Switch
Hardware

Application:

2010 - 2016 Ford Raptor F-150
2010 - 2014 Ford F-150

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031744435
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	S8 Series
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
