Ford Super Duty (11-16) S8 20 inch Front Bumper Kit Baja Designs

Manufacturer: Baja Designs

SKU: 447791-FGXX

Manufacturer part number: 447791

Be the first to review this product

$792.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Ford	F-350 Super Duty	King Ranch	2011	2016
Ford	F-250 Super Duty	King Ranch	2011	2016
Ford	F-250 Super Duty	Lariat	2011	2016
Ford	F-350 Super Duty	Lariat	2011	2016
Ford	F-250 Super Duty	XL	2011	2016
Ford	F-350 Super Duty	XL	2011	2016
Ford	F-250 Super Duty	XLT	2011	2016
Ford	F-350 Super Duty	XLT	2011	2016
Ford	F-250 Super Duty	Platinum	2013	2016
Ford	F-350 Super Duty	Platinum	2013	2016

Overview
Specifications
Reviews
Contact Us

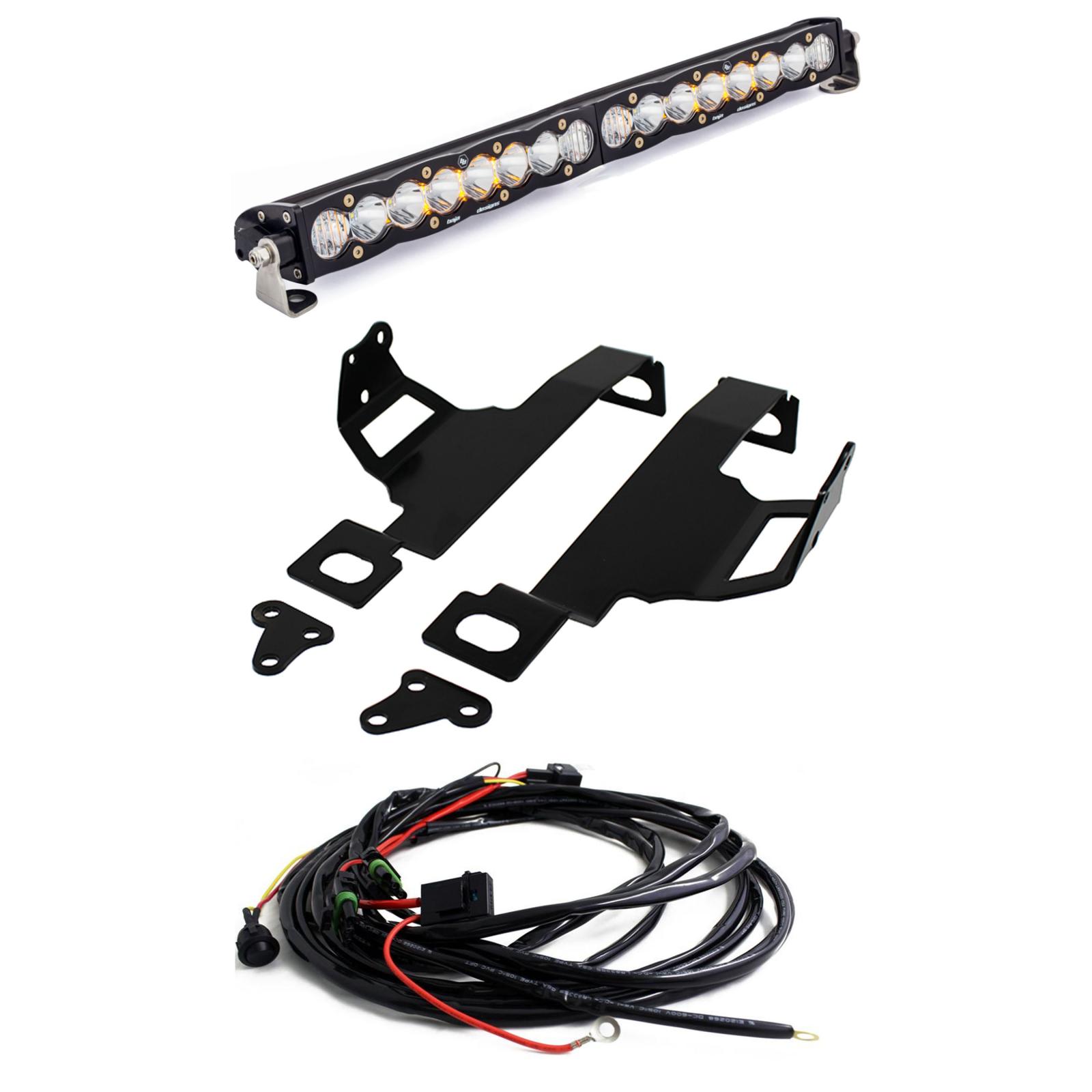

Set your Ford Super Duty apart from the rest than with some Baja Designs LED Light Bars. Our Ford Super Duty LED Light Bar Mount Kit has been specifically designed for 2011-2014 Ford Super Duty models giving you that clean OEM look.

This mount kit allows for easy installation of a 20 inch S8 LED Light Bar. This mount kit also comes equipped with a wiring harness that allows you to use a separate auxiliary switch.

Baja Designs Features:

Satisfactions Guarantee 30 Day Money Back Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

Lumens: 12,700 Utilizing 16 Cree LEDs
Wattage/Amps: 120W / 8.00A
Dimensions: 20 inch x 3 inch x 1.6 inch
Weight: 4.5 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)

Includes:

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031744534
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	S8 Series
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
