Ford Super Duty (20-On) 7 XL Linkable Kit w/Upfitter Baja Designs

Manufacturer: Baja Designs

SKU: 447732UP-FGXX

Manufacturer part number: 447732UP

Be the first to review this product

$1,753.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Ford	F-250 Super Duty	King Ranch	2020	2021
Ford	F-350 Super Duty	King Ranch	2020	2021
Ford	F-350 Super Duty	Lariat	2020	2021
Ford	F-250 Super Duty	Lariat	2020	2021
Ford	F-250 Super Duty	Limited	2020	2021
Ford	F-350 Super Duty	Limited	2020	2021
Ford	F-350 Super Duty	Platinum	2020	2021
Ford	F-250 Super Duty	Platinum	2020	2021
Ford	F-250 Super Duty	XL	2020	2021
Ford	F-350 Super Duty	XL	2020	2021
Ford	F-350 Super Duty	XLT	2020	2021
Ford	F-250 Super Duty	XLT	2020	2021

Overview
Specifications
Reviews
Contact Us

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit includes all the necessary components to outfit your 2020+ Ford Superduty with 7 XL Linkables. This kit is designed for the enthusiast who has a factory upfitter system in their truck or sPOD / Switch Pros unit.

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

Lumens: 22,050 Utilizing 28 LEDs
Wattage/Amps: 182W / 14A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

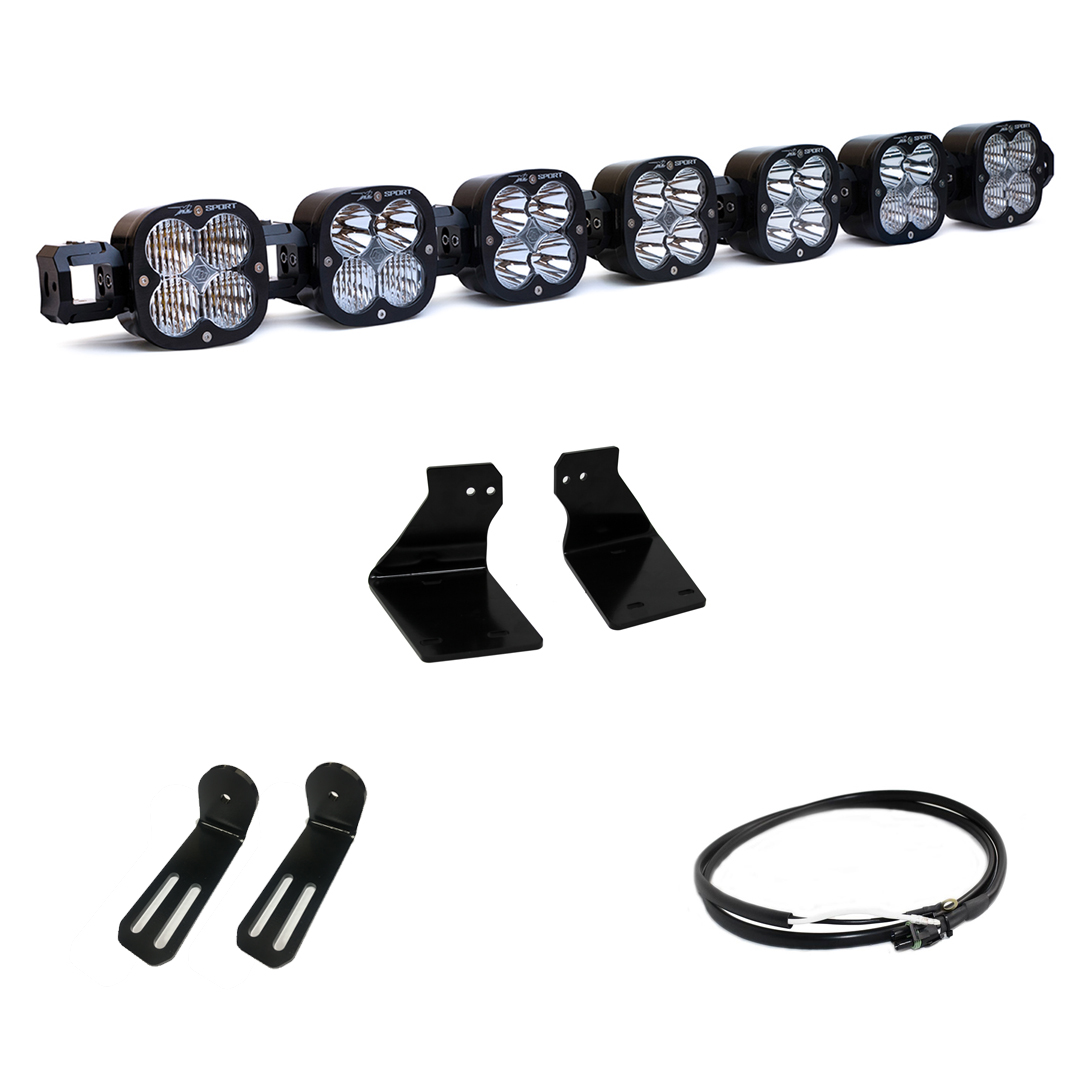

Includes:

x3 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light
x7 XL Sport Rock Guards
Support kit
Upfitter Harness
Super Duty Brackets

Application:
(2020- On) Ford Superduty
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031742417
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	XL Series
Finish	Powdercoat
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
