GM 8.5 Inch Limited Slip 2.73/Up 28 Spline LM102949/11 Nitro Gear and Axle

Manufacturer: Nitro Gear And Axle

SKU: NPGM8.5-3-28-FSJK

Manufacturer part number: NPGM8.5-3-28

Be the first to review this product

$535.00

Qty:

+ -

Overview
Specifications
Reviews
Contact Us

Nitro Gear and Axle strives to provide the highest quality differential components available. We take the steps necessary to ensure our parts are dependable. Our product range is continually growing to meet the needs of consumers for new ratios and applications. At Nitro we know differentials, and know what it takes to provide you with high quality components.
Details:

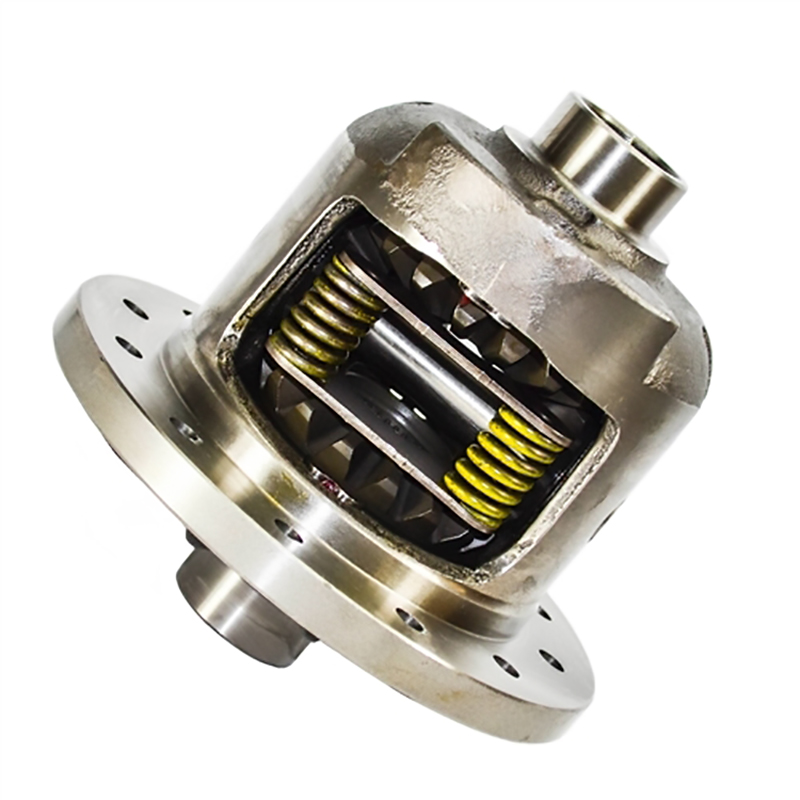

GM 8.5 Inch, 2.73-Up, 28 Spline, LM102949/11, Nitro Limited Slip
Features Eaton Carbon Fiber Clutches and 400 Lb Springs
Differential: GM 8.5 10-Bolt Car
Gear Ratio: 2.73-5.38
Axle Splines: 28
Ring Gear Bolts: 10 (Not Included)
Material: Cast Iron
Manufacturer: Nitro Gear and Axle
Assembled In The U.S.A.
Warranty: 1 Year
Sold As Each

Tech Note:

Requires LM102949 and LM102911 Bearings or Nitro Bearing Kit BKGM8.5-HD (Includes Bearings/Races/Seals)
All GM 8.5 inch differentials will require the use of a Side bearing kit which has larger I.D. than stock
This LSD did away with one of the factory weak links and made the bearing journal thicker and stronger

Fits Vehicles:

1970-1981 Camaro and Z28
1973-1977 Chevelle
1973-1977 Nova
1973-1977 Monte Carlo
1973-1977 Pontiac Grand Prix
1971-1985 Chevy Impala
1971-1990 Chevy Caprice
1973-1977 Buick Regal
1982-1987 Buick Regal Grand National GN
1982-1987 Buick Regal T-Type
1987 Buick GNX
1973-1977 Olds Cutlass Supreme
1979-1987 Chevy 1/2 Ton Pickup K10 C10 Front or Rear
1979-1988 Chevy G10 Van
1979-1988 Blazer K5 Front or Rear
1979-1988 GMC K5 Jimmy Front or Rear
1979-1988 Suburban Front or Rear
1988 Chevy 1/2 Ton Pickup C1500 K1500

Products specifications

Country of Origin	USA
Sold As	Each
UPC	670385625169
Differential	GM 8.5 Inch
Availability	Available
Location	Front, Rear
Ratio	2.73-Up Ratio
Universal	No
Axle Shaft Spline Quantity	28 Spline
Mfg Label	Limited Slips
Ring Gear Bolts	10 Bolt
Youtube Video	https://youtu.be/KvB_LbTbpE4
Fitment Notes	70-81 Camaro Z28, 73-77 Chevelle, 73-77 Nova, 73-77 Monte Carlo, 73-77 Pontiac Grand Prix, 71-85 Impala, 71-90 Caprice, 73-77 Buick Regal, 82-87 Buick Regal Grand National GN, 82-87 Buick Regal T-Type, 87 Buick GNX, 73-77 Olds Cutlass Supreme, 79-87 1/2 Ton K10 C10 Front or Rear, 79-88 G10 Van, 79-88 Blazer K5 Front or Rear, 79-88 GMC K5 Jimmy Front or Rear, 79-88 Suburban Front or Rear, 88 1/2 Ton C1500 K1500
Material	Cast Iron
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
