GMC 1500 (19-On) Clear Spot/Amber W/C FPK Baja Designs

Manufacturer: Baja Designs

SKU: 448084-FGXX

Manufacturer part number: 448084

Be the first to review this product

$884.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
GMC	Sierra 1500	AT4	2019	2022
GMC	Sierra 1500	AT4	2019	2021
GMC	Sierra 1500	Denali	2019	2022
GMC	Sierra 1500	Elevation	2019	2022
GMC	Sierra 1500	SLE	2019	2022
GMC	Sierra 1500	SLT	2019	2022
GMC	Sierra 1500	AT4X	2022	2022
GMC	Sierra 1500	Denali Ultimate	2022	2022
GMC	Sierra 1500	Pro	2022	2022

Overview
Specifications
Reviews
Contact Us

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC, 1500 19-On! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side.

This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units.

If you're looking to add not only safety but lighting performance this is your kit!

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):

Lumens: 2,375 Utilizing 1 LED
Wattage/Amps: 20W / 1.45A
Dimensions: 2.1 inch x 2.1 inch x 2.1 inch
Safe Voltage Range: 9-28V
Weight: 0.4 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Application:

GMC, 1500 (19-On)

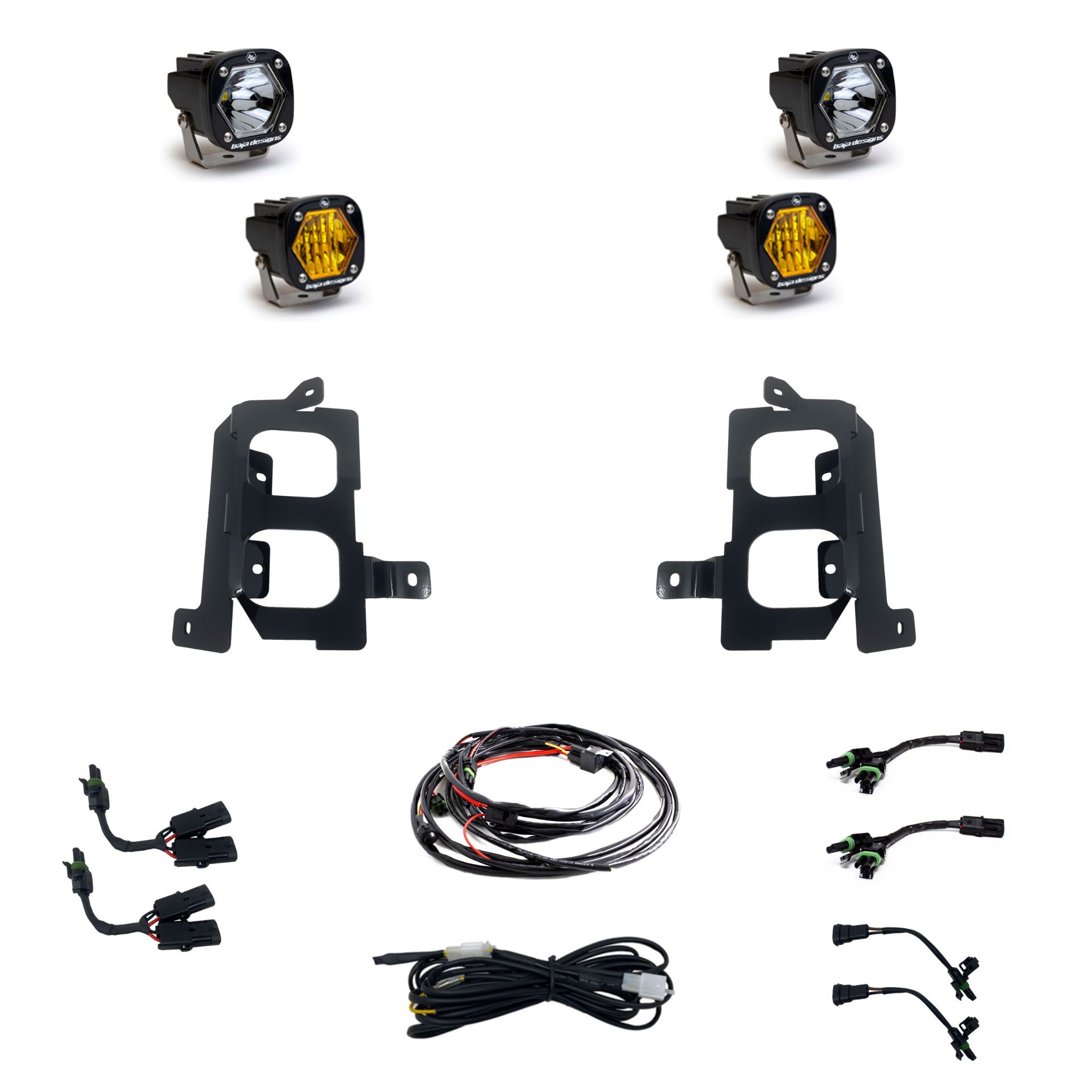

Includes:

x2 S1 Clear Spot
x2 S1 Amber Wide Cornering
x2 Fog Pocket Brackets
x2 Adapters
x2 Wiring Splitters
x1 Wiring Harness

Patterns:

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031746224
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	S1
