GMC 2500/3500 20-On Clear Spot/Clear W/C Fog Pocket Kit Baja Designs

Manufacturer: Baja Designs

SKU: 447855-FGXX

Manufacturer part number: 447855

Be the first to review this product

$884.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
GMC	Sierra 3500 HD	AT4	2020	2022
GMC	Sierra 2500 HD	AT4	2020	2022
GMC	Sierra 3500 HD	AT4	2020	2022
GMC	Sierra 2500 HD	AT4	2020	2022
GMC	Sierra 2500 HD	Denali	2020	2022
GMC	Sierra 3500 HD	Denali	2020	2022
GMC	Sierra 3500 HD	SLE	2020	2022
GMC	Sierra 2500 HD	SLE	2020	2022
GMC	Sierra 2500 HD	SLT	2020	2022
GMC	Sierra 3500 HD	SLT	2020	2022

Overview
Specifications
Reviews
Contact Us

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your GMC, 2500 and 3500 20-On! Available in White or Amber, this kit utilizes the factory fog pocket location to pack two S1 lights on each side.

This kit is controlled by the factory fog switch to operate the lower pair S1 lights. The upper pair of S1 lights are operated by your high beams. The included wiring harness is designed to be used in conjunction with factory light switches, and sPOD / Switch Pros units.

If you're looking to add not only safety but lighting performance this is your kit!

Baja Designs Features:

Satisfactions Guarantee 30 Day Money Back Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color

Specifications (Per Light):

Lumens: 2,375 Utilizing 1 LED
Wattage/Amps: 20W / 1.45A
Dimensions: 2.1 inch x 2.1 inch x 2.1 inch
Safe Voltage Range: 9-28V
Weight: 0.4 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Application:

GMC, 2500 and 3500 (20-On)

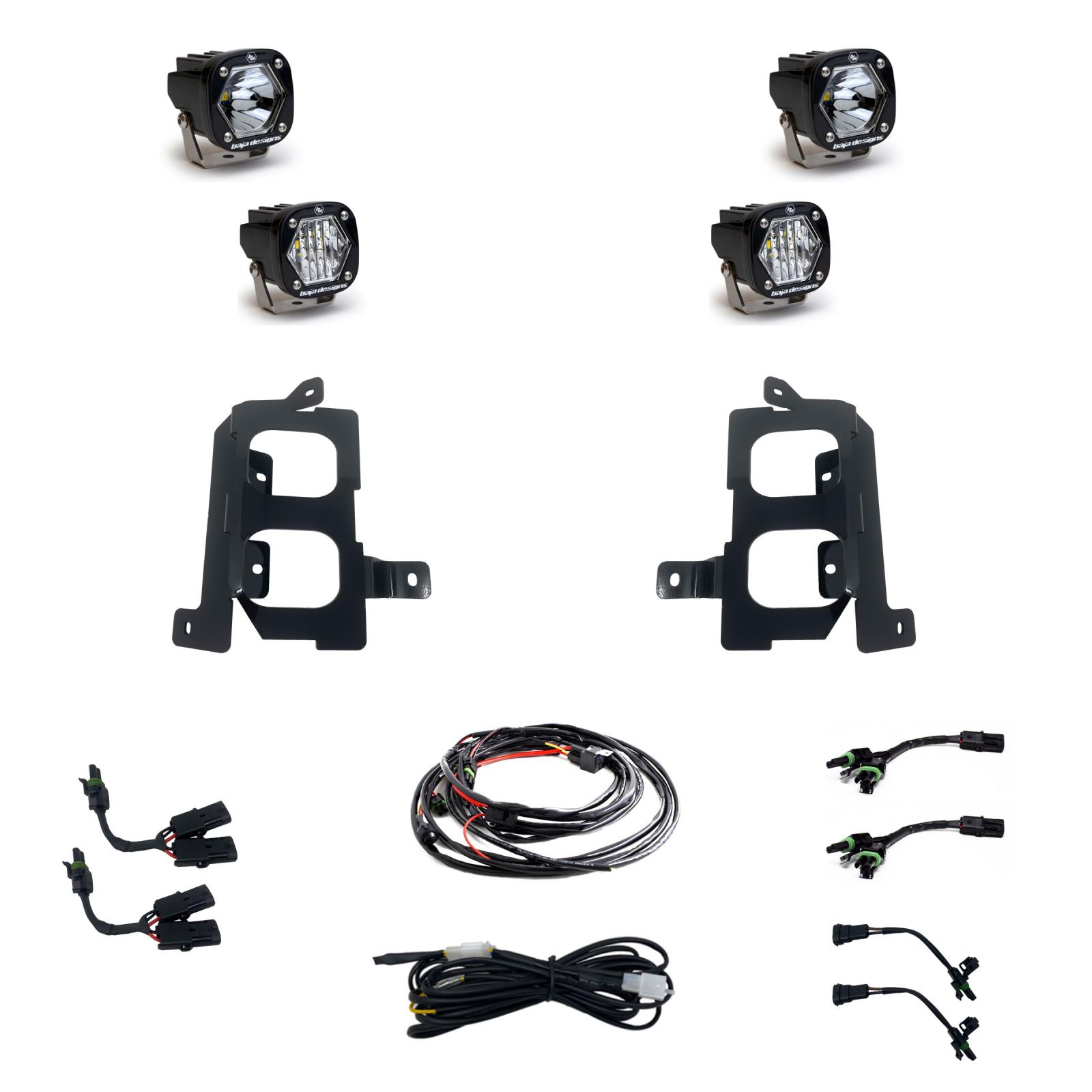

Includes:

x2 S1 Clear Spot
x2 S1 Amber Wide Cornering
x2 Fog Pocket Brackets
x2 Adapters
x2 Wiring Splitters
x1 Wiring Harness

Patterns:

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031745395
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	S1
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
