GMC 2500/3500 2020-On Behind Grill Kit Dual S8 Baja Designs

Manufacturer: Baja Designs
SKU: 447854-FGXX
Manufacturer part number: 447854
$1,954.95
+ -
Vehicle Fitments
MakeModelSubmdelFromTo
GMCSierra 3500 HDAT420202022
GMCSierra 2500 HDAT420202022
GMCSierra 3500 HDAT420202022
GMCSierra 2500 HDAT420202022
GMCSierra 2500 HDDenali20202022
GMCSierra 3500 HDDenali20202022
GMCSierra 3500 HDSLE20202022
GMCSierra 2500 HDSLE20202022
GMCSierra 2500 HDSLT20202022
GMCSierra 3500 HDSLT20202022

This is a turn key solution for anyone that is interested in serious lighting performance with styling in mind. This Dual S8 behind the grill kit will provide you with over 38,000 lumens and an amber backlit feature without cutting or drilling!

This kit will include a wiring harness, 3-pin splitter, and amber backlit fuse tap kit. This combination will enable users to tap into their vehicle's ignition which will automatically trigger the amber backlit LEDs. This attractive safety feature is pleasing to the eye, while drawing minimal amps and keeping you visible while out on the trail.

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uServiceReplaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock?„? Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 Percent
5000K Daylight Less Driver Fatigue, Natural Color

Specifications:(per light)

  • Lumens: 19,050 Utilizing 24 Cree LEDs
  • Wattage/Amps: 180W / 12A
  • Dimensions: 30 Inch x 3 inch x 1.6 inch
  • Weight: 6.5 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)

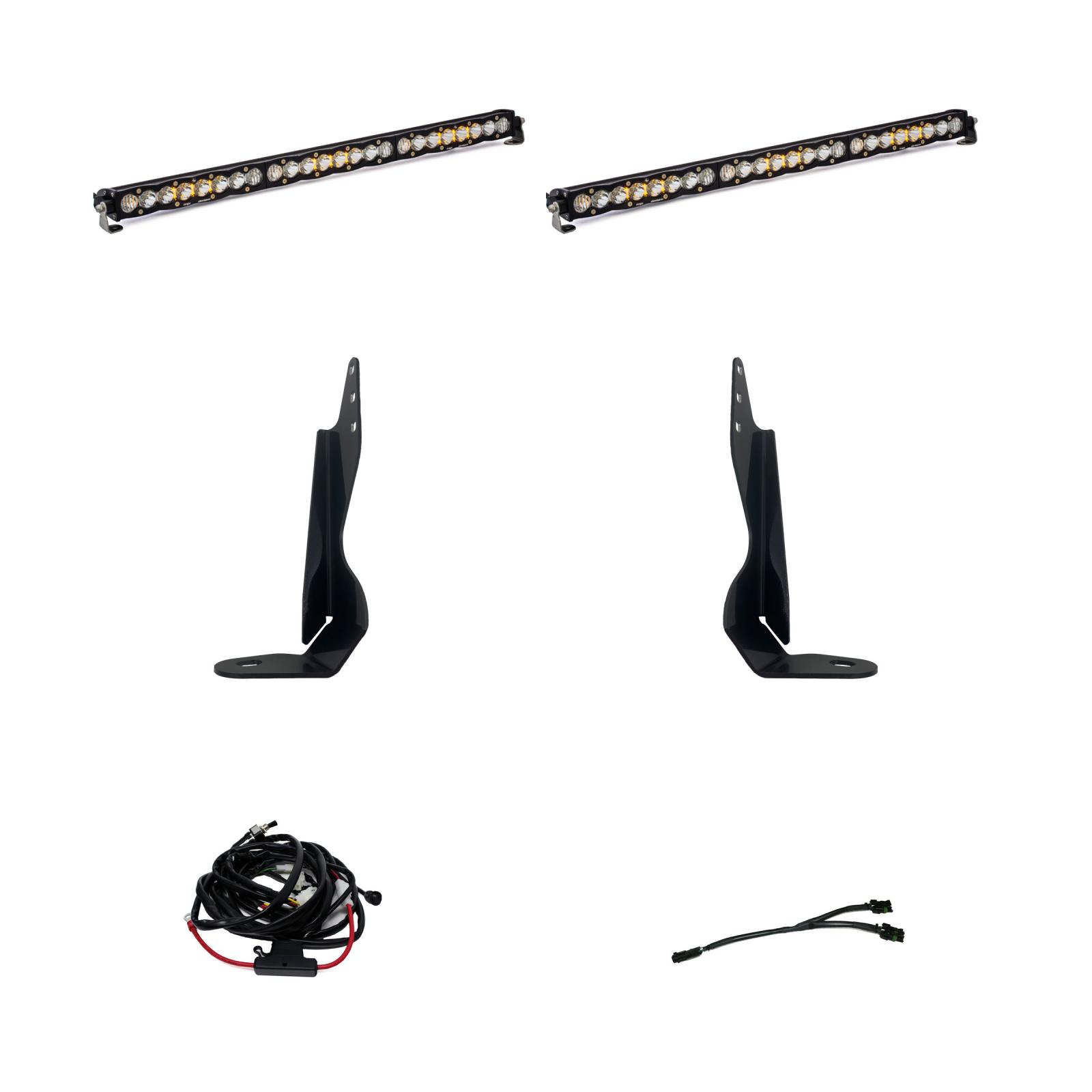

Kit Includes:

  • x2 S8 30 inch Driving Combo
  • Wiring
  • Hardware
  • Brackets

Application:

GMC, 2500 and 3500 20-On

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 Degree) and spot (9 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Products specifications
Country of OriginUSA
Sold AsKit
UPC810031745371
AvailabilityAvailable
UniversalNo
Bezel MaterialBillet Machined Aluminum
Bracket MaterialStainless Steel
Brackets IncludedYes
Housing TypeAircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
SeriesS8 Series
