Jeep JL/JT Dual LP4 Auxiliary Light Kit Baja Designs

Manufacturer: Baja Designs

SKU: 447658-FGXX

Manufacturer part number: 447658

Be the first to review this product

$1,128.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
Jeep	Wrangler	Sport	2018	2021
Jeep	Wrangler	Rubicon	2018	2021
Jeep	Wrangler	Sport S	2018	2021
Jeep	Wrangler	Unlimited Moab	2018	2019
Jeep	Wrangler	Unlimited Rubicon	2018	2021
Jeep	Wrangler	Unlimited Sahara	2018	2021
Jeep	Wrangler	Unlimited Sport	2018	2021
Jeep	Wrangler	Unlimited Sport S	2018	2021
Jeep	Gladiator	Altitude	2020	2021
Jeep	Gladiator	Launch Edition	2020	2020
Jeep	Gladiator	Mojave	2020	2020
Jeep	Gladiator	Overland	2020	2021
Jeep	Gladiator	Rubicon	2020	2021
Jeep	Gladiator	Sport	2020	2021
Jeep	Gladiator	Sport S	2020	2021

Overview
Specifications
Reviews
Contact Us

This lighting and wiring setup has been tested on the Jeep JL / JT with the plastic bumper to take the guess work out of installation! The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings.

The LP4 features a total of 8,750 lumens and a 200 Degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber day-time running light, the LP4 will fulfill all your lighting needs.

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 Percent
5000K Daylight - Less Driver Fatigue, Natural Color
Specifications (per light):
Forward Projecting Lumens: 7,050 Utilizing 4 LEDs
Forward Projecting Wattage/Amps: 60W / 6.5A
IPT Lumens: 1,700 Utilizing 4 LEDs
IPT Wattage/Amps: 15W / 1.0A
Backlight Wattage/Amps: 4.83W / 0.35A
Dimensions: 5.1 inch Height / 5.1 inch Width / 3.2 inch Depth
Weight: 2.8lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless plastic
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

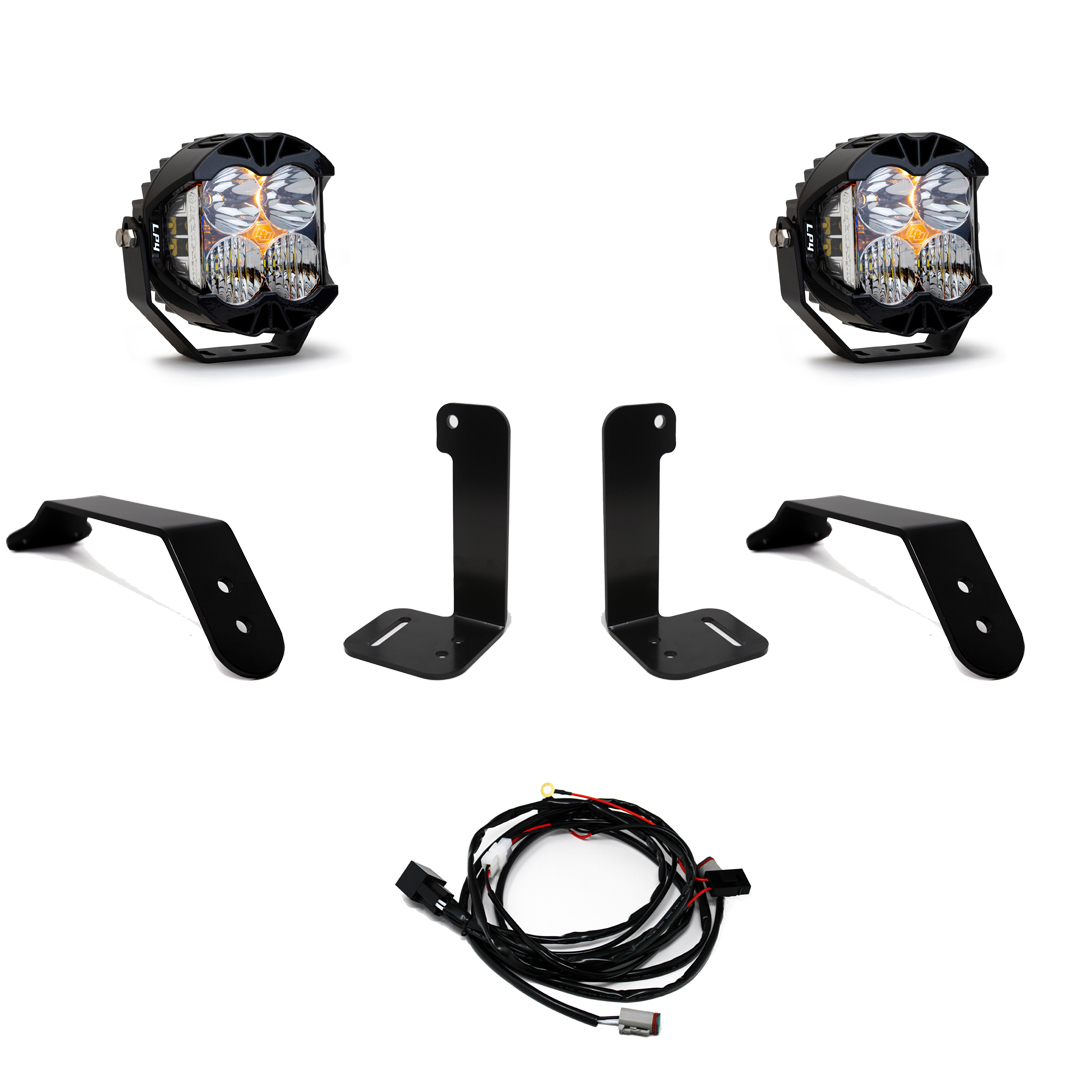

Inlcudes:

QTY (2) LP4 LED Light
QTY (1) Wiring Harness
Vehicle Specific Brackets
Zip ties

Application:

Jeep JL W/ plastic Bumper
Jeep JT W/ plastic Bumper

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 Degree) and the spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031742172
Availability	Available
Universal	No
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	Jeep OE
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
