Jeep JL/JT Roof Bar LED Light Kit 50 Inch OnX6+ Baja Designs

Vehicle Fitments
MakeModelSubmdelFromTo
JeepWranglerRubicon20182021
JeepWranglerSport20182021
JeepWranglerSport S20182021
JeepWranglerUnlimited Moab20182019
JeepWranglerUnlimited Rubicon20182021
JeepWranglerUnlimited Sahara20182021
JeepWranglerUnlimited Sport20182021
JeepWranglerUnlimited Sport S20182021
JeepGladiatorLaunch Edition20202020
JeepGladiatorMojave20202020
JeepGladiatorOverland20202021
JeepGladiatorRubicon20202021
JeepGladiatorSport20202021
JeepGladiatorSport S20202021

Carefully designed to be the ultimate roof mounted light bar kit for the JL and Gladiator JT platforms. The 50 inch OnX6+ combines far reaching, high speed spot reflectors with the Baja Designs Driving Combo lens for a smooth yet intense pattern that will light up the whole trail.

This kit includes a 50 inch OnX6+ LED Light Bar, vehicle specific mounting brackets, hardware, and wiring to make installation a breeze. No cutting, trimming, or drilling is required and all wiring is pre-sized for your vehicle.

This kit includes an Upfitter Wiring harness for models with factory Upfitter switch provisions.
This bar is equipped with BMT Battery Management Technology

  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes

The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.
Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 39,430 Utilizing 30 Cree LEDs
  • Wattage/Amps: 355W / 28.2A
  • Dimensions: 50 x 4.29 x 2.69 inch
  • Weight: 18.65 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

  • OnX6+ 50 LED Light Bar
  • Vehicle Specific Mounting Brackets
  • Upfitter Harness

Application:

  • Jeep JL
  • Jeep JT
Products specifications
Country of OriginUSA
Sold AsKit
UPC810031742462
AvailabilityAvailable
UniversalNo
Bracket MaterialStainless Steel
Brackets IncludedYes
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy49,930 Hours
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
SeriesJeep OE
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov

*
*
*

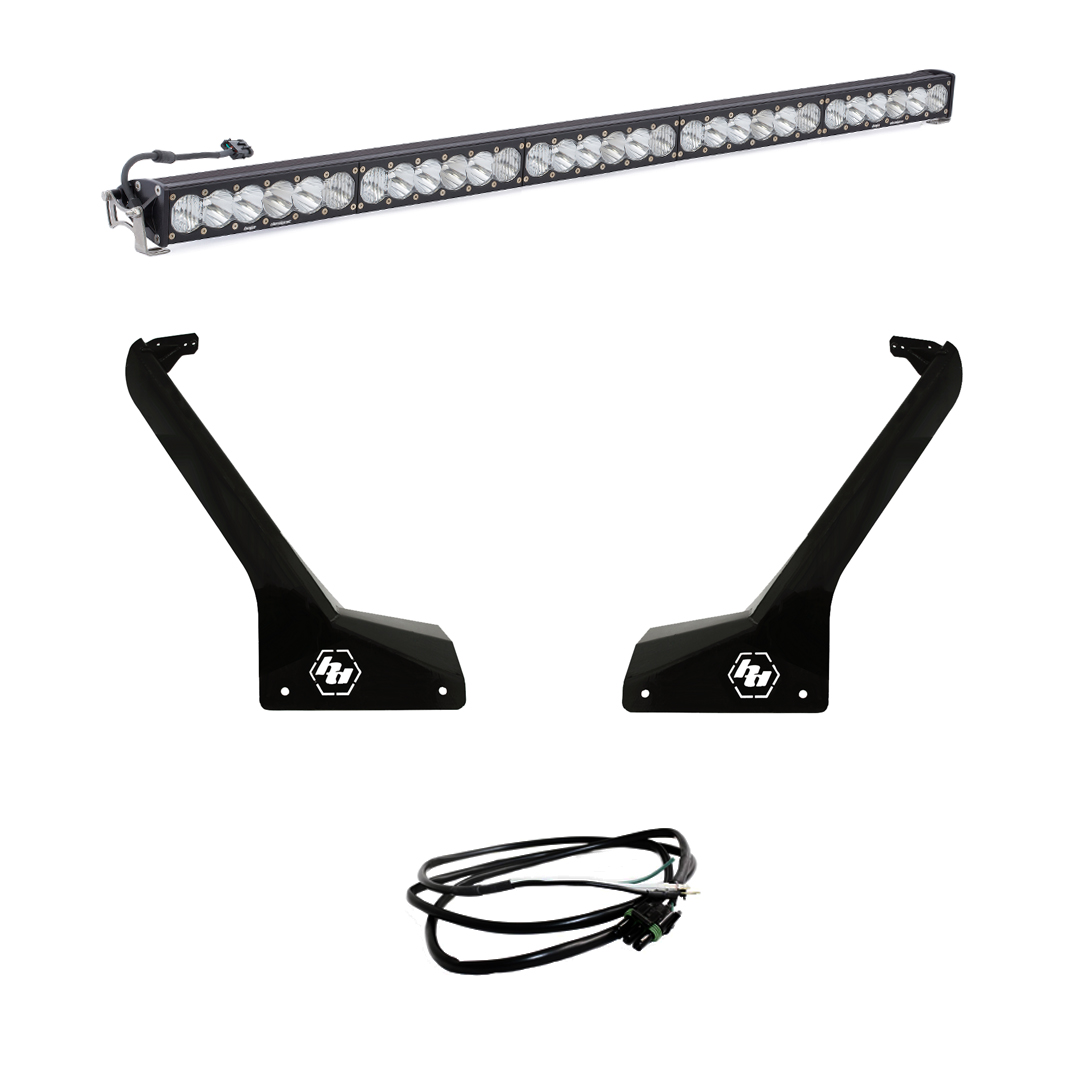

Picture of Jeep JL/JT Roof Bar LED Light Kit 50 Inch OnX6+ w/Upfitter Baja Designs
Jeep JL/JT Roof Bar LED Light Kit 50 Inch OnX6+ w/Upfitter Baja Designs
SKU: 447666UP-FGXX
Manufacturer part number: 447666UP

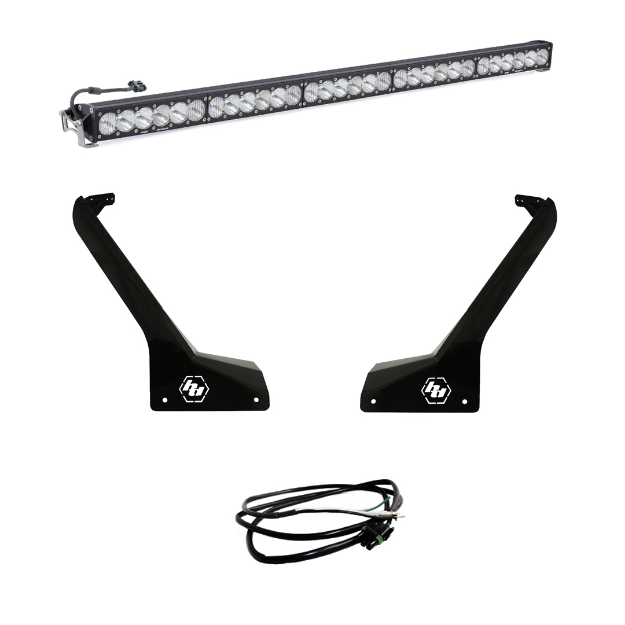

Picture of Jeep JL/JT Roof Bar LED Light Kit 50 Inch OnX6+ Baja Designs
Jeep JL/JT Roof Bar LED Light Kit 50 Inch OnX6+ Baja Designs
SKU: 447666-FGXX
Manufacturer part number: 447666
Products specifications
Country of OriginUSA
Sold AsKit
UPC810031742462
AvailabilityAvailable
UniversalNo
Bracket MaterialStainless Steel
Brackets IncludedYes
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Life Span Expectancy49,930 Hours
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
SeriesJeep OE
Proposition 65 Warnings

CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
