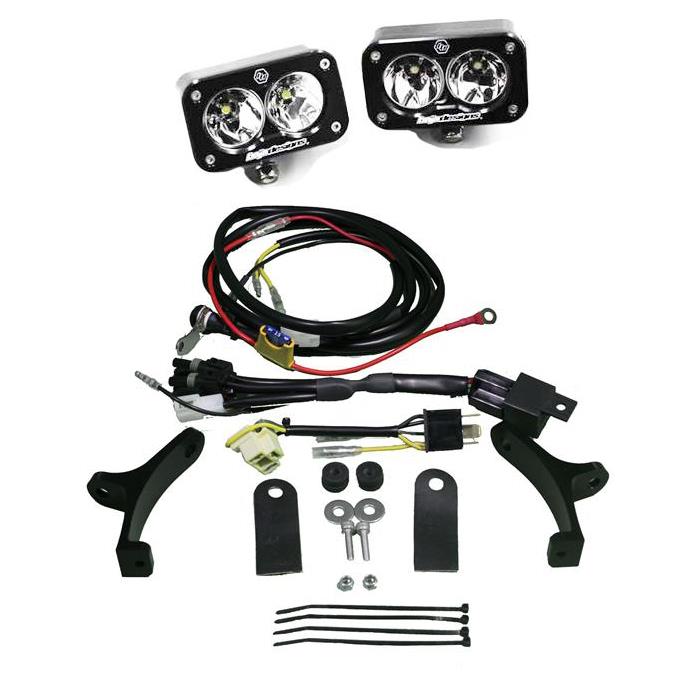

KTM 1190/1290 Adventure Bike Kit S2 LED Baja Designs

Manufacturer: Baja Designs

SKU: 487053-FGXX

Manufacturer part number: 487053

Be the first to review this product

$524.95

Qty:

+ -

Vehicle Fitments

Make	Model	Submdel	From	To
KTM	1290 Super Adventure		2016	2016
KTM	1190 Adventure		2016	2016

Overview
Specifications
Reviews
Contact Us

A vehicle specific kit that works on both the 1190 and 1290 KTM Adventure bike series, utilizing two of our.Similar to the Squadron Sport, the Squadron-R Sport off-road lights produce 1,800 lumens of pure power to light up the trail on your nighttime off-roading excursions!

The Squadron-R Sport has been designed for customers looking for LED performance with more traditional styling. The Squadron-R Sport has also been optimized for aftermarket bumpers featuring a 4 round hole.
Enjoy nearly 50,000 hours of optimal performance out of this small, but high-performing auxiliary LED light.
Light Pattern-Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both wide cornering (42 degree) and Spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Baja Designs Features:

Satisfactions Guarantee 30 Day Money Back
Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color
Specifications (per light):
Lumens:1,800 Utilizing 4 Cree XP-G2 LEDs Wattage/Amps:20W / 1.4A
Dimensions:3.5 x 2.77 x 3.5 inch
Weight:12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:

Includes: Squadron Sport LED Light Mounting Bracket
Patterns:Driving/Combo: Maximum trail coverage in a single light.

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	819314023298
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Driving/Combo
Mfg Label	LED Light Kit
Waterproof Rating	IP69K Waterproof
Wattage/AMP	20W / 1.66A
Youtube Video	https://youtu.be/G9rvxf9ZF8M
Series	S2 Series
Lumens	1,800
Color	Black
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
