KTM 790 Light Kit For 19-OnKTM 790 Dual Squadron Pro/Racer Kit Baja Designs

Manufacturer: Baja Designs

SKU: 497004-FGXX

Manufacturer part number: 497004

Be the first to review this product

$566.95

Qty:

+ -

Vehicle Fitments

Make	Model	From	To
KTM	790 Adventure	2019	2020
KTM	790 Adventure R	2019	2020
KTM	790 Duke	2019	2020
KTM	790 Adventure R Rally	2020	2020

Overview
Specifications
Reviews
Contact Us

Spice your K 790 up with a lighting kit from Baja Designs! This kit includes everything you need such as wiring, lights, bracketry, and hardware.

This kit utilizes our Squadron series of light, and will provide ample performance for any adventure you're on. One of the key benefits to this kit is that it utilizes our Racer Edition line of Squadron.

This light is able to achieve further distances thanks to its high intensity LEDs. Installation is a breeze, and the fient is second to none!
Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Squadron Pro):

Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Baja Designs Features:

Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService- Replaceable Lenses And Optics
ClearView- All The Light, Right Where You Need It.
MoistureBlock- Waterproof, Rain Proof, Submersible
CopperDrive- Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
Lumens: 4,300 Utilizing 4 Cree High Intensity LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

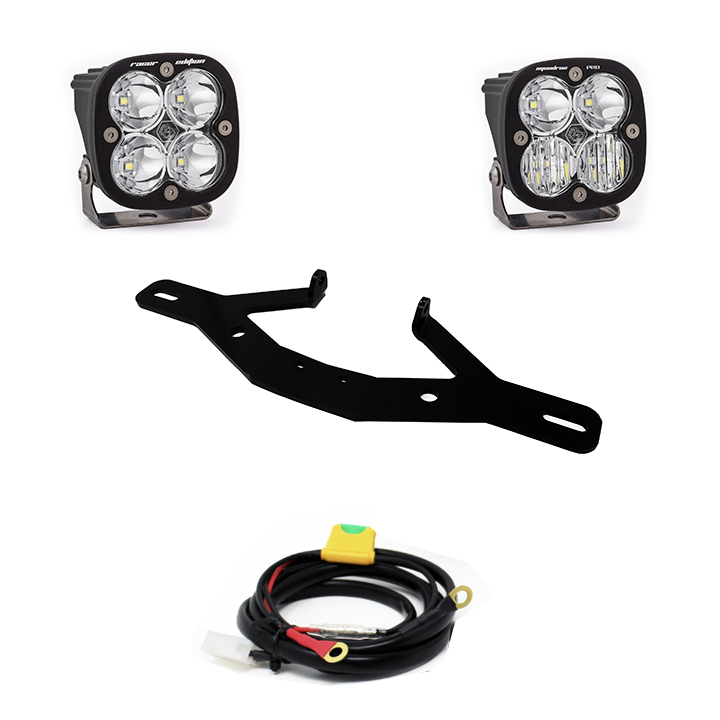

Includes:

(1) Squadron Pro Driving/ Combo LED Light
(1) Squadron Racer Spot LED Light
Bracletry
Wiring Harnesses
Hardware

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 Degree) and the spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	810031741953
Availability	Available
Universal	No
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Series	Squadron Series
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
