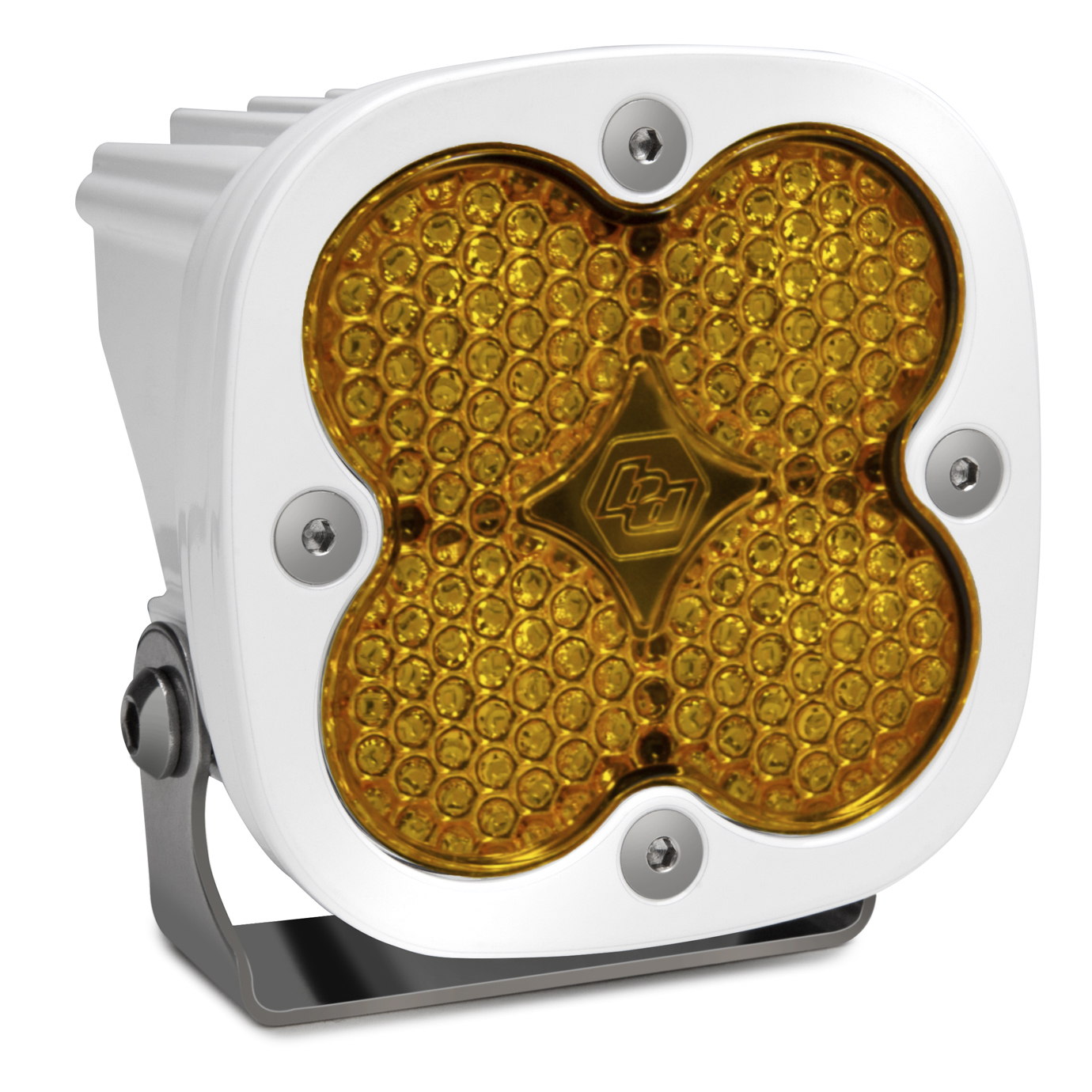

The Squadron Sport is hands down the best LED on the market today. Although similar in aesthetics to the Squadron Pro, the application for the Sport varies. The Squadron Sport utilizes 4 LEDs producing an impressive 3,100 lumens at 27.5 watts making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Light Pattern-Work/Scene: Excellent work light or scene light with an extremely smooth 120 circle that projects about 40 feet. This pattern is not suitable for driving. (Lighting Zone 7)

Baja Designs Features:

Light Pattern Work/Scene
Housing Color White
Lens Color Amber
Satisfaction Guarantee 30 Day Money Back Guarantee
Limited Lifetime WarrantyComplete Purchase Protection
uServiceReplaceable Lenses And Optics
ClearViewAll The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDriveOnly LED Driven At 100 percent
5000K DaylightLess Driver Fatigue, Natural Color
Specifications:
Lumens: 3,100 Utilizing 4 LEDs
Wattage/Amps: 27.5W / 2A
Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Over voltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Includes:

Squadron Sport LED Light-Work/Scene-Amber Lens and White Housing
Mounting Bracket

Products specifications

Country of Origin	USA
Sold As	Each
UPC	819314024837
Availability	Available
Universal	Yes
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Amber
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Work/Scene
Waterproof Rating	IP69K (Waterproof up to 9ft Pressure Washable)
Wattage/AMP	20W / 1.4A
Series	Squadron Sport Series
Lumens	2260
Finish	Powdercoat
Color	White
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
