Take your UTV side by side to the next level with our Baja Designs UTV vehicle specific mounting kits. This kit comes equipped with a pair of Squadron Pro LED lights that will truly light up the night at 9,800 lumens at 80 watts. Whether youre looking for more trail coverage or just need more light for outdoor working conditions, these Squadron Pro LED lights have you covered.
Compatible Models for 1.75 inch Mounts:

Polaris RZR
Polaris Ranger
Arctic Cat Wildcat

Compatible Models for 2 inch Mounts:

Can-Am Maverick
Can-Am Commander
Yamaha Viking

Baja Designs Features:
Light Pattern: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both wide cornering (10 degree) and Spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Satisfactions Guarantee 30 Day Money Back
Guarantee
Limited Lifetime Warranty Complete Purchase Protection
uService Replaceable Lenses And Optics
ClearView All The Light, Right Where You Need It.
MoistureBlock Waterproof, Rain Proof, Submersible
CopperDrive Only LED Driven At 100 percent
5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps:42W/3.33A
Dimensions: 3.07 x 2.77 x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

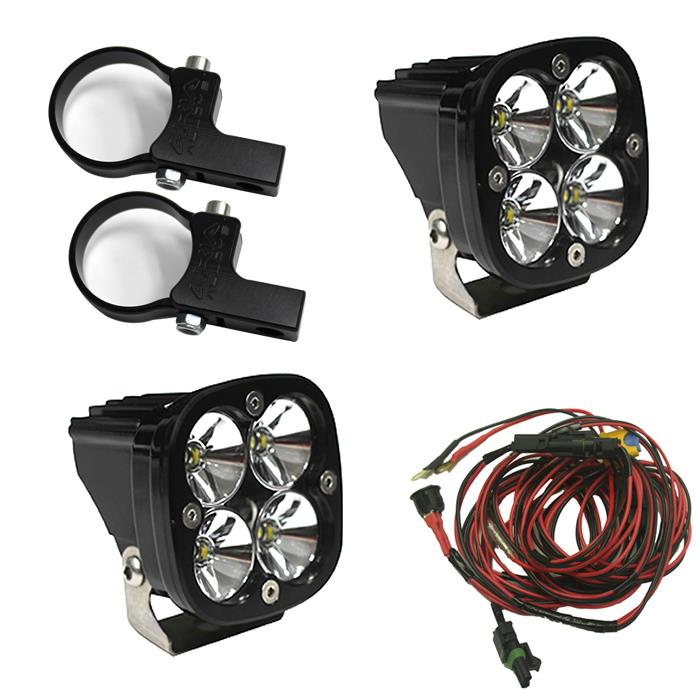

Includes:

(2) Squadron Pro LED Lights
(2) A Pillar Mounts
Wiring Harness

Products specifications

Country of Origin	USA
Sold As	Kit
UPC	819314024585
Availability	Available
Universal	Yes
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Driving/Combo
Mfg Label	LED Light Pods
Waterproof Rating	IP69K Waterproof
Wattage/AMP	42W / 3.33A
Youtube Video	https://youtu.be/G9rvxf9ZF8M
Series	Squadron Pro Series
Lumens	4,900
Color	Black
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
