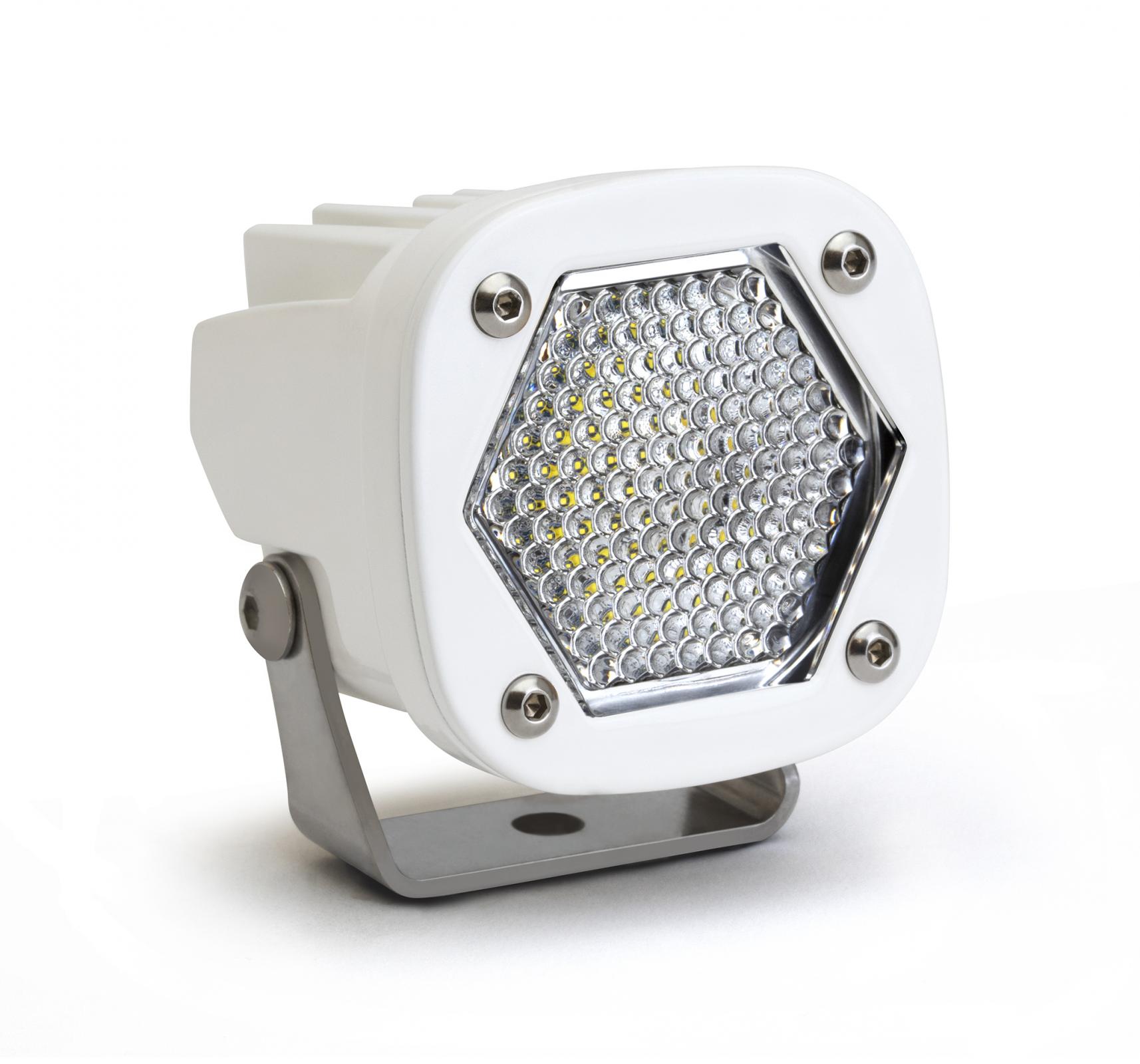

Designed from the ground up our S1 fills the shoes of a large light in a small package! With the 2.1 inch length, width, and height the S1 is highly versatile for any application that is in need of light.

Projecting a single laser chip through our proprietary High Speed Spot optic, this light produces an extremely tight 1.5 Degree pattern, and distance that is untouchable by any LED or HID platform.

If your truck, jeep, or UTV requires the ultimate in distance lighting look no further than the S1 Laser. (Patent Pending)

Baja Designs Features:

  • Satisfactions Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):

  • Lumens: 500 Utilizing 1 Laser Chip
  • Wattage/Amps: 15W / 1.1A
  • Dimensions: 2.1 inch x 2.1 inch x 2.1 inch
  • Weight: 0.4 lbs
  • Laser Chip Life Expectancy: 2000
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

  • x1 S1 Work/Scene Light
  • Mounting Bracket
Products specifications
Country of OriginUSA
Sold AsEach
UPC810031740734
AvailabilityAvailable
UniversalYes
Bezel MaterialBillet Machined Aluminum
Bracket MaterialStainless Steel
Brackets IncludedYes
Housing TypeHard Anodized and Powder Coated Cast Aluminum
IK10 CompliantIK10 Compliant (Mechanical Impact Testing)
Lens ColorClear
Lens MaterialHard Coated Polycarbonate
Life Span Expectancy49,930 Hours
Light PatternSpot
Waterproof RatingIP69K (Waterproof up to 9ft Pressure Washable)
Youtube Videohttps://youtu.be/j7nggg5W6s0
MaterialAircraft Grade Aluminum
FinishPowdercoat
