LED Light Pods Work/Scene Pattern Pair Squadron Pro Series Baja Designs

Manufacturer: Baja Designs

SKU: 497806-FGXX

Manufacturer part number: 497806

Be the first to review this product

$429.95

Qty:

+ -

Overview
Specifications
Reviews
Contact Us

Light up the night with a Squadron Pro LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV, and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next-generation LEDs pushing out 4,095 lumens. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (per light):

Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.07 x 2.77 x 3.07 inch
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized and Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

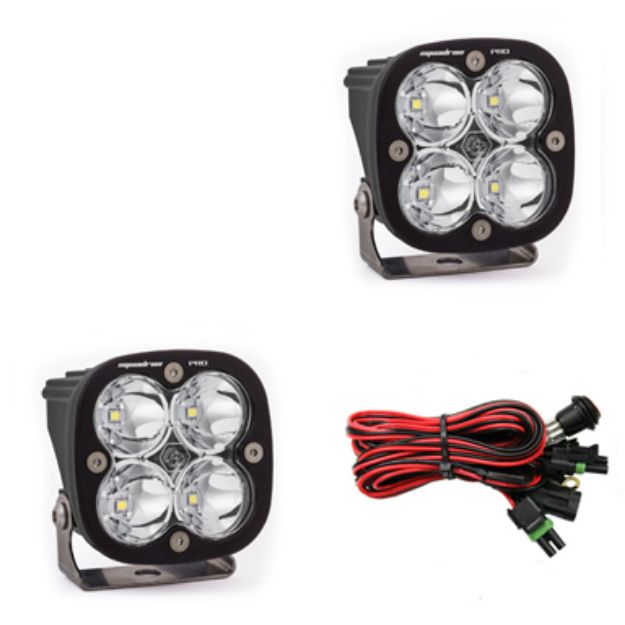

Includes:

(2) Squadron Pro LED Lights
Mounting Brackets
Wiring Harness

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Work/Scene: Excellent work light or scene light with an extremely smooth 120 degree circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)

Products specifications

Country of Origin	USA
Sold As	Pair
UPC	819314021713
Availability	Available
Universal	Yes
Bezel Material	Billet Machined Aluminum
Bracket Material	Stainless Steel
Brackets Included	Yes
Housing Type	Hard Anodized and Powder Coated Cast Aluminum
IK10 Compliant	IK10 Compliant (Mechanical Impact Testing)
Lens Color	Clear
Lens Material	Hard Coated Polycarbonate
Life Span Expectancy	49,930 Hours
Light Pattern	Work/Scene
Mfg Label	Tail Light Lens
Waterproof Rating	IP69K (Waterproof, Submersible to 9ft)
Wattage/AMP	40W / 3.33A
Youtube Video	https://youtu.be/G9rvxf9ZF8M
Series	Squadron Pro Series
Lumens	4,900
Color	Black
Proposition 65 Warnings	CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov
