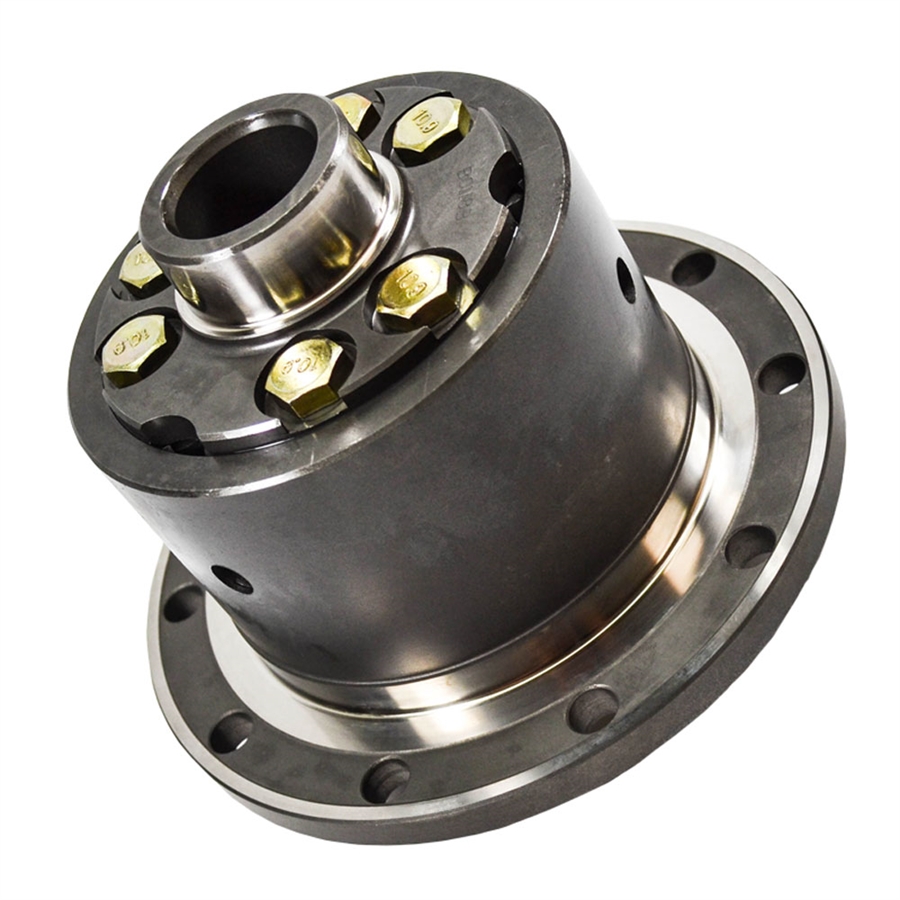

Toyota 8 Inch Helix Helical Gear Limited Slip Differential 45 mm Bearing Journals Nitro Gear & Axle

Manufacturer: Nitro Gear And Axle
SKU: TORS-T8-30-FSJK
Manufacturer part number: TORS-T8-30
$524.00
+ -

The Nitro Helical Worm Gear is a torque-sensitive mechanical limited-slip differential that uses worm gears and spur gears to dispense and distinguish input power between two drive wheels or front and back axles. This is a completely separate design from the common beveled spider gear designs seen in most of the automotive industry.

Just like any LSD, the Nitro Helical Worm Gear functions as a standard or open differential under normal driving conditions, allowing one wheel to spin faster or slower as necessary. When a wheel experiences a loss of traction, the gear separation forces start to take effect and distributes the torque to the high-traction wheel by increasing the helical-shaped gears mesh force until wheel spin is reduced or entirely stopped. Once the vehicle exits the low traction condition, the differential resumes normal operation.

What's nice about the operation of a Nitro Helical Worm Gear LSD, is its characteristics; smooth, quiet and automatic. This LSD will engage without any driver awareness or require any action. It also has no wearable components and requires no maintenance, producing less time on the rack and more on the road.
Features:

  • Toyota 8 Inch Nitro Helix Helical Gear Limited Slip Differential 45 mm Bearing Journals
  • Differential: Toyota 8 Inch V6 4cyl High pinion
  • Gear Ratio: All
  • Axle Splines: 32
  • Ring Gear Bolts: 10 (not included)
  • Warranty: 1 Year

Fits:

  • Rear:
    • 1984-2009 Toyota 4Runner
    • 1979-1995 Toyota Hilux Pickup (North America)
    • 1979-2011 Toyota Hilux Pickup (Rest of the world)
    • 2003-2009 Lexus GX470
    • 1984-1990 Toyota Land Cruiser II 70 series Bundera (LJ70/RJ70)
    • 1990-1996 Toyota Land Cruiser Prado 70 Series
    • 1993-2002 Toyota Land Cruiser Prado 90
    • 2002-2009 Toyota Land Cruiser Prado 120
    • 1984-2009 Toyota Hilux Surf
    • 2005-2009 Toyota Fortuner
    • 2007-2009 Toyota FJ Cruiser
    • 1998-2007 Toyota Land Cruiser HZJ105
    • 1998-2007 Toyota Land Cruiser FZJ105
    • 1990-1997 Toyota Land Cruiser HDJ80/81
    • 1990-1997 Toyota Land Cruiser HZJ80/81
    • 1991-1992 Toyota Land Cruiser FJ80/81
    • 1993-1997 Toyota Land Cruiser FZJ80/81
  • Front (solid axle models):
    • 1984-1985 Toyota 4Runner
    • 1979-1985 Toyota Hilux Pickup (North America)
    • 1979-1997 Toyota Hilux Pickup (Rest of the world Solid front axle)
    • 1991-Present Toyota Land Cruiser 70 ( HZJ/FJ/FZJ/GRJ/VDJ 70 71 73 74 75 76 77 78 79 Series
    • 1984-1990 Toyota Land Cruiser II 70 series Bundera LJ/RJ/KZJ 70 71 73 78
    • 1990-1996 Toyota Land Cruiser Prado 70 Series
    • 1998-2007 Toyota Land Cruiser HZJ105 FZJ105
    • 1990-1997 Toyota Land Cruiser HDJ80/81 FZJ80/81 HZJ80/81 FJ80/81
    • 1990-2007 Toyota Land Cruiser Burbuja & Autana (venezuela)
    • 1991-1992 Toyota Land Cruiser FJ80/81
    • 1993-1997 Toyota Land Cruiser FZJ80/81
Products specifications
Country of OriginUSA
Sold AsEach
UPC670385642517
DifferentialToyota 8.0 Inch
AvailabilityAvailable
LocationFront, Rear
UniversalNo
Axle Shaft Spline Quantity30 Spline
Bearing Journel45mm
Ring Gear Bolts10 Bolt
Youtube Videohttps://youtu.be/9xFXJYl28H8
